380V 6 Axis Industrial Welding Robots Flexible Robotic Welding Automation

Welding robot for stainless steel products

Welding application of stainless steel products


Technical features:

The robot moves steadily, the end speed is consistent with the set welding speed,

and the welding is stable and well formed;
The robot and the welding machine realize full digital communication control,

so that the best welding efficiency and welding effect can be achieved;
The robot and the welding machine are fast and stable through full digital communication;
Single/double pulse welding machine, realizing low spatter welding in full current section;

Less spatter and less grinding; With short arc pulse technology, the welding speed is faster;

With high-frequency pulsating energy control, the melting depth is deeper, the heat input is lower,

and the scales are more beautiful; With smooth short circuit transition technology,

the weld bead is uniform and the molding is beautiful;
Wire feeding with encoder feedback is more stable and anti-interference is strong
Upgradable expert database
With position finding function
The pulse welding gun has a large heat output. When welding with a large current,

a water-cooled gun is required. The 500A water-cooled hollow welding gun supports long-time high current welding;


Scope of application:
1.2mm-4mm stainless steel welding (air cooling gun)
5mm-14mm stainless steel welding (water cooling gun)


Application field:
Parts of food utensils, kitchen and toilet, auto parts, gas tanks, electric boxes, medical equipment and other industries

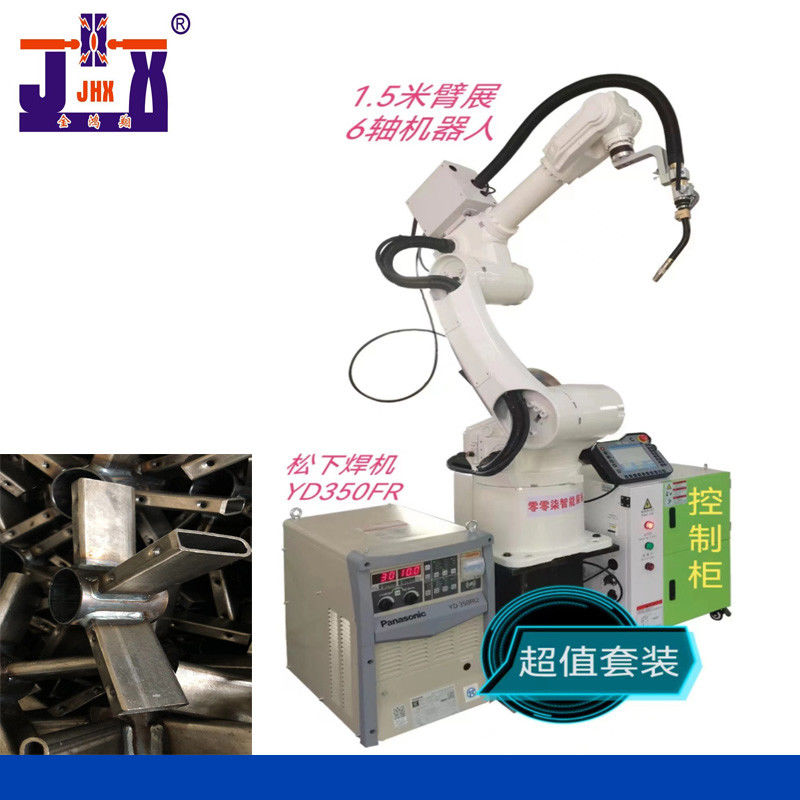

Performance characteristics of robot body

· The arm span is 1.5 meters. The design is highly compact and can be flexibly installed on the ground or upside down.

· With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications.

· The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.

· The robot body adopts highly flexible special cable.

· Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI.

· The robot body is with dual-circuit gas pipe to meet the welding demand.

· The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch.

· Highly flexible welding cable is built-in.

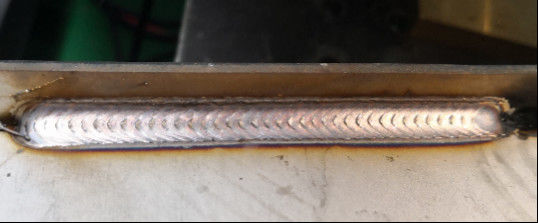

Welding workpiece
