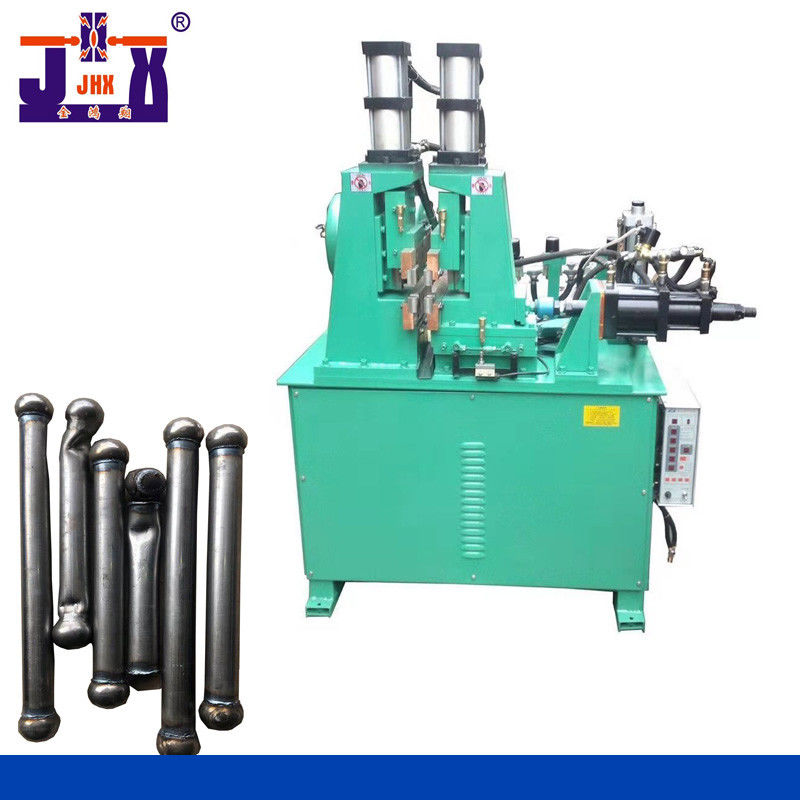

Iron Pipe Steel Ball Flash Butt Welding Machine 380V 50HZ 60HZ

Iron pipe flash butt welding machine For butt welding of iron pipe+steel ball

Nickname

JS-100 flash welder,

flash butt welder,

large round bar butt welder,

square pipe butt welder,

iron pipe butt welder,

flat iron butt welder

Function and application:

horizontal butt welding of large iron wire, wide flat iron and iron pipe. A welding interface is completed in a few seconds. The equipment has the advantages of high efficiency, high precision, firm welding, good compactness, no false welding, no pores and no slag inclusion.

Main application areas

1. Welding of various tableware, kitchen and tableware tools;
2. Butt welding of bicycles, motorcycles, car rims and other metal rings;
3. Butt welding of various metal wires, metal belts, iron bars and building reinforcement;
4. "L" shape and "t" shape welding of various round pipes and square pipes;
5. Diagonal welding of window frame and door frame.

Our advantages

Performance characteristics:



All red copper water circulation control device of transformer, water-saving forced cooling, imported high-grade silicon steel, with long service life, high conductivity, low power consumption and strong current. And equipped with temperature control system, overheating and overload will automatically power off for protection.

2. Thyristor, the main circuit adopts high-power SCR contactless switch, water-saving forced cooling and long-term durability.



3. The push cylinder is a pneumatic oil booster cylinder with adjustable stroke and large force. To ensure the welding effect of welding large workpieces.



4. The lower pressure cylinder is a double force cylinder. The downward pressure is large to ensure that the workpiece does not move to ensure the stability of welding. And equipped with large flow control valve, the air flow is controllable and the regulation is more ideal.

5. The holding down device is equipped with slide rails on the left and right, and the horizontal push is also equipped with slide rails. It can move up, down, left and right, and move easily and accurately.

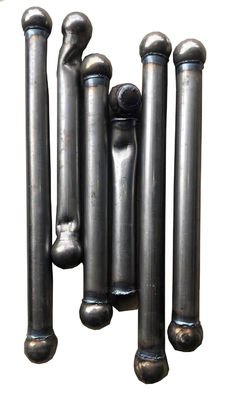

Welding sample display







Technical parameters:
Model	JD-80K600L	JD-100K600L	JD-125K600L	JD-150K600L	JD-200K600L
Rated power  KVA	80	100	125	150	200
Input voltage  V	380V 50/60HZ	380V 50/60HZ	380V 50/60HZ	380V 50/60HZ	380V 50/60HZ
Maximum short circuit current    A	27000	29000	31000	32000	34000
MM Diameter of welded iron pipe  MM	≤20	≤30	≤35	≤40	≤50
Cooling water volume  L/LIN	10	10	10	12	12
Weight    KG	450	500	550	580	630
