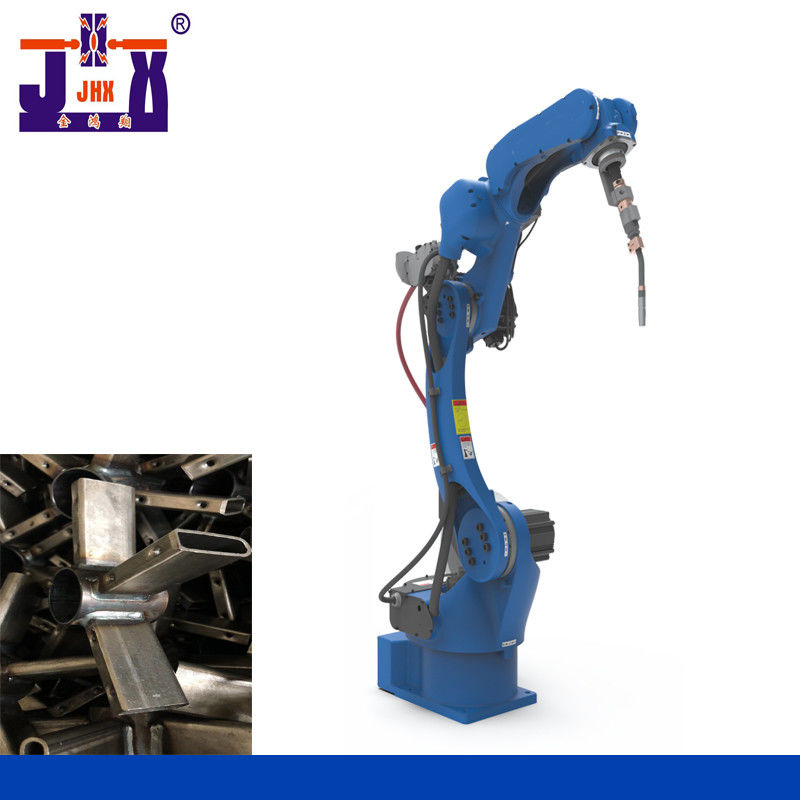

Industrial Welding Arm Robot Automatic 1454mm Reaching Distance

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	1510
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export safety wooden case
Delivery Time:	5-10 days or negotiation
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Industrial 6 Axis Arm Welding Robot	Key Selling Points:	Flexible, Stable, Durable And High Precision
Weight (KG):	170	Voltage:	380V
Dimensions:	550785410mm	Maximum Boom Extension:	1500MM
Function:	Automatic Welding	After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support
Highlight:	Industrial Welding Arm Robot , Welding Arm Robot 6 Axis

Industrial Welding Arm Robot Automatic 1454mm Reaching Distance

· The arm span is 1.5 meters. The design is highly compact and can be flexibly installed on the ground or upside down.

· With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications.

· The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.

· The robot body adopts highly flexible special cable.

· Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI.

· The robot body is with dual-circuit gas pipe to meet the welding demand.

· The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch.

· Highly flexible welding cable is built-in.

Industrial Welding Arm Robot Automatic 1454mm Reaching Distance 0

Industrial Welding Arm Robot Automatic 1454mm Reaching Distance 1

Industrial Welding Arm Robot Automatic 1454mm Reaching Distance 2

ROBOT BODY TECHNICAL PARAMETERS

Model		CRP-RH14-10-W
Arm form		Vertical multiple joints
Degree of freedom		6 axis
Maximum payload		10KG
Repeated positioning accuracy		±0.08mm
Maximum reaching distance		1454mm
Robot body weight		170KG
Installation mode		Ground,upside down mounting,wall mounting
Maximum travel	axis 1	Ground/upside down mounting-167°~167°,wall mounting -30°~30°
	axis 2	-155°~90°
	axis 3	-175°~240°
	axis 4	-190°~190°
	axis 5	-105°~130°
	axis 6	-105°~130°
Maximum axis speed	axis 1	169°/s
	axis 2	169°/s
	axis 3	169°/s
	axis 4	301°/S
	axis 5	220°/s
	axis 6	743°/S
Allowable torque	axis 4	20N.m
	axis 5	5 20N.m
	axis 6	11N.m
Allowable moment of inertia	axis 4	0.5kg.m2
	axis 5	0.5kg.m2
	axis 6	0.16kg.m2
Installation environment	ambient temperature	0~45℃
	relative humidity	20~80%(No condensation)
	vibration	Under 0.5G
	Others	Robot installation must be away from: Flammable or corrosive liguids or gases . Electrical sources of interference
Ip level		Body IP54,wrist IP67
Advantage features		Compact structure,high speed,high precision,high expansibility and easy operation,
Application		Welding.cutting.assembly.handling, marking.grinding

Industrial Welding Arm Robot Automatic 1454mm Reaching Distance 3

FAQ

Q: What is your normal lead time?

A. If there is stock, our company usually receives the payment for goods and delivers them within a week. If it needs to be customized, the delivery cycle is usually 3-4 weeks after receiving the deposit.

Q: What are your terms of payment?

A: We accept TT.

Q: What kind of packing do you offer?

A. Packaging is usually installed for the export of plywood boxes.

Q: What is the minimum order quantity you can produce?

A. Usually we have them in stock, and the minimum order is 1 set.

Q: How to control product quality?

A. We always attach great importance to product quality. Before leaving the factory, it will be fully aged and debugged. And we always adhere to the principle of "providing customers with better quality, better price and better service.
