Name: Automatic Polishing Robot Grinding Machine Flexible High Precision
Brand: Dongguan Jinghongxiang Automation Equipment Co., Ltd.
SKU: 1510
Availability: InStock

Home Products Welding Arm Robot

Automatic Polishing Robot Grinding Machine Flexible High Precision

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	1510
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export safety wooden case
Delivery Time:	5-10 days or negotiation
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Applicable Industries:	Building Pipes, Process Products, Automobile Sheet Metal,	Core Components:	PLC, Precision Servo, Robot Body, Welding Power Supply, Control Cabinet
Product Name:	Industrial 6 Axis Arm Welding Robot	Key Selling Points:	Flexible, Stable, Durable And High Precision
Weight (KG):	170	Operation Type:	Software
Feature:	Fully Automatic，Arbitrary Action Programming	Function:	Automatic Welding
Highlight:	Automatic Robot Grinding Machine , Flexible Robot Grinding Machine , High Precision Robot Polishing Machine

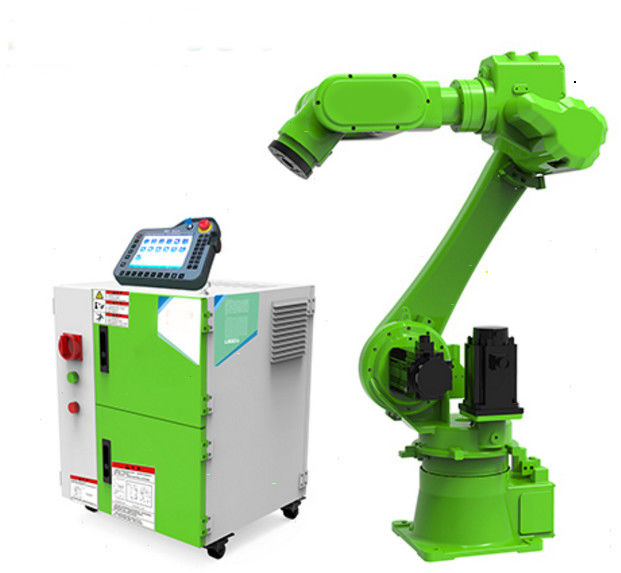

Grinding robot Automatic grinding and polishing

Automatic Polishing Robot Grinding Machine Flexible High Precision 0

Automatic Polishing Robot Grinding Machine Flexible High Precision 2

Application characteristics
Keep the consistency of product processing accuracy, ensure reliable quality and reduce scrap rate;
Robots work instead of operators, and operators do not directly contact dangerous processing equipment

to avoid industrial accidents;
Redevelopment, users can conduct secondary programming according to different parts,

shorten the cycle of product upgrading and reduce the corresponding equipment investment.

Welding workpiece

Automatic Polishing Robot Grinding Machine Flexible High Precision 3

ROBOT BODY TECHNICAL PARAMETERS

Model		CRP-RH14-10-W
Arm form		Vertical multiple joints
Degree of freedom		6 axis
Maximum payload		10KG
Repeated positioning accuracy		±0.08mm
Maximum reaching distance		1454mm
Robot body weight		170KG
Installation mode		Ground,upside down mounting,wall mounting
Maximum travel	axis 1	Ground/upside down mounting-167°~167°,wall mounting -30°~30°
	axis 2	-155°~90°
	axis 3	-175°~240°
	axis 4	-190°~190°
	axis 5	-105°~130°
	axis 6	-105°~130°
Maximum axis speed	axis 1	169°/s
	axis 2	169°/s
	axis 3	169°/s
	axis 4	301°/S
	axis 5	220°/s
	axis 6	743°/S
Allowable torque	axis 4	20N.m
	axis 5	5 20N.m
	axis 6	11N.m
Allowable moment of inertia	axis 4	0.5kg.m2
	axis 5	0.5kg.m2
	axis 6	0.16kg.m2
Installation environment	ambient temperature	0~45℃
	relative humidity	20~80%(No condensation)
	vibration	Under 0.5G
	Others	Robot installation must be away from: Flammable or corrosive liguids or gases . Electrical sources of interference
Ip level		Body IP54,wrist IP67
Advantage features		Compact structure,high speed,high precision,high expansibility and easy operation,
Application		Welding.cutting.assembly.handling, marking.grinding
