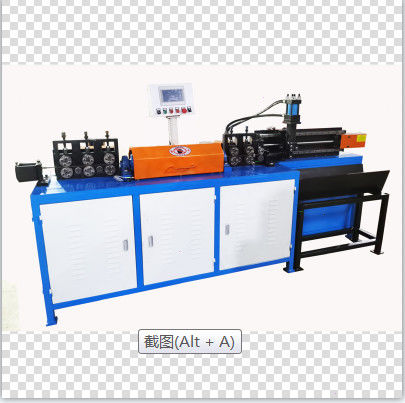

Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter

Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter

Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter
Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter
Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: JZ2-5
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export safety wooden case
Delivery Time: 5-10 days or negotiation
Supply Ability: 50 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Straightening And Cutting Machine Core Components: Motor, Cast Iron, Machined Parts
Power: 3+4KW Warranty: 1 Year, 1 Years
Key Selling Points: Fully Automatic, Low Price, Small Straightening Length Error, Applicable Industries: Widely Used In Hardware, Machinery, Electrical, Instrumentation, Construction And Other Industries.
Weight (KG): 600 Control System: Fully Automatic, Low Price, Small Straightening Length Error,
Highlight:

Auto Wire Straightening Cutting Machine

,

CE Wire Straightening Cutting Machine

,

Chasing Shear Wire Straightener And Cutter

Chasing shear straightening and cutting machine 2-5MM



summary
The machine's motor+frequency converter feed wire, hydraulic cut-off, servo chasing shear. Servo control of the chasing and shearing mechanism can keep synchronization with the wire at the moment of shearing, which can ensure the accurate length of the shearing wire.

Other names
Chasing shear straightening and cutting machine,
Chasing shear straightening machine,
Tracing shearing machine,
Chasing and shearing straight-line machine

Straightening and cutting machine,
straightening machine, linear machine,
cutting machine,
straightening machine,
1-2.5MM straightening machine,
2-5MM straightening machine,
5-9MM straightening machine,
small straightening machine,
medium straightening machine,
large straightening machine,

Technical parameter
Model JZ2-5 JZ5-9 JZ9-12
Line range φ2-5MM φ5-9mm φ9-12mm
Max.length 50MM 50MM 50MM
Straighten deliver link speed 30-48M/min 25-45M/min 20-40M/min
Power 3+5.5KW 3+5.5KW 3.7+14.5KW
Hydraulic motor 1.5KW 2.2KW 3.7KW
Servo power of chasing shear 0.75KW 1KW 1.5KW
Weight 800KG 850KG 1360KG
Overall dimensions 2.86*0.62*1.5M 2.86*0.62*1.5M 3.66*0.62*1.5M



Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter 0


Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter 1

Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter 2
Auto Wire Straightening Cutting Machine Chasing Shear Wire Straightener And Cutter 3


 Our purpose:

no matter new or old models, we must achieve the ultimate!!
Warm tip:

our products are constantly upgraded and improved.

If the color or structure changes, the real object shall prevail.

Tag:

Mechanical Straightening Cutting Machine,

Hardware Automatic Straightening Machine,

High Speed Wire Straightening And Cutting Machine
