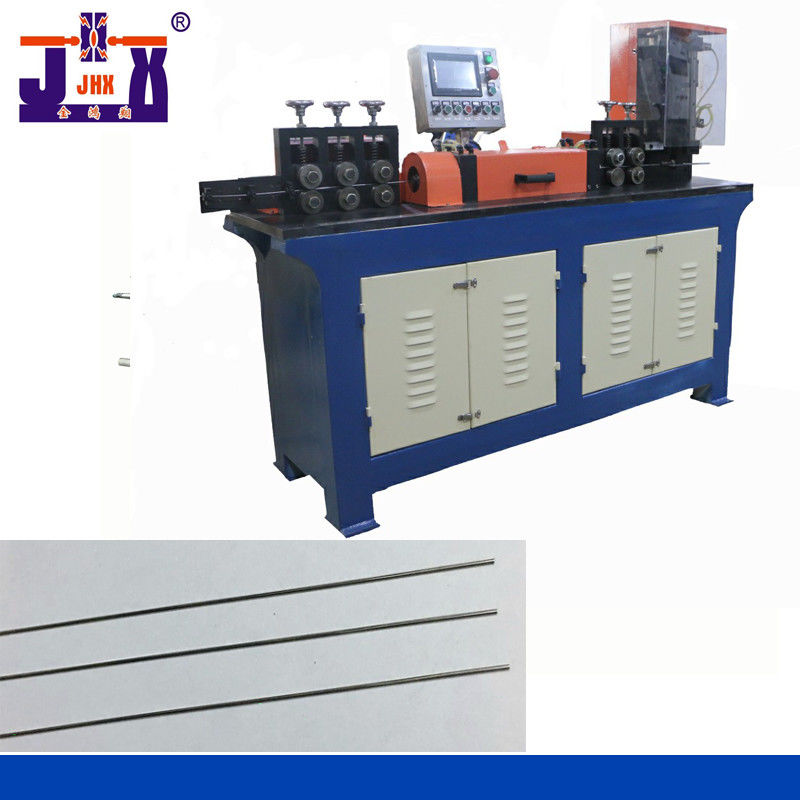

High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming

High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming

High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming
High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming
High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: JZ2-5
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export safety wooden case
Delivery Time: 5-10 days or negotiation
Supply Ability: 50 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Straightening And Cutting Machine Core Components: Motor, Cast Iron, Machined Parts
Power: 7.5KW Warranty: 1 Year, 1 Years
Key Selling Points: Fully Automatic, Low Price, Small Straightening Length Error, Applicable Industries: Widely Used In Hardware, Machinery, Electrical, Instrumentation, Construction And Other Industries.
Weight (KG): 500 Control System: Fully Automatic, Low Price, Small Straightening Length Error,
Highlight:

High Speed Wire Straightening Cutting Machine

,

PLC Programming Wire Straightening Cutting Machine

,

Fully Automatic Straightening And Cutting Machine

high-speed straightening and cutting machine





summary
The biggest feature of flying shear straightening machine is its fast speed. Efficient and time-saving.

Other names

JZG straightening and cutting machine, straightening machine,
linear machine,
blanking machine,

high-speed blanking machine,
flying shear straightening machine,
high-speed straightening and cutting machine



High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming 0




High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming 1

High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming 2



Performance characteristics:

1.The high-speed straightening and cutting machine is also called straightening and wire breaking machine and iron wire blanking machine. It is mainly used for straightening and cutting the coil wire or loop wire of various iron wires, stainless steel wires, cold drawn wires, steel wires and other wires.
2. CNC length adjustment is adopted, which is more accurate and less error for straightening and cutting the flexible wire than the traditional gun positioning cutting.
3. The servo motor is used for cutting at the same speed and continuous automatic cutting operation, which solves the problem of blocking materials during cutting by the traditional straightening and cutting machine. The incision is neat and the speed is super fast, which can reach more than 5 times of the traditional machine, realizing high quality and high efficiency.
4. The straightening part is composed of straightening wheels, straightening pressing blocks and bearing seats at both ends, which can complete the straightening of wire rods of various sizes, with high speed and good straightening effect
5. Equipped with automatic feeder, the feeding is controllable and powered, and the high-speed straightening speed is more perfect.

Detail structure
1. Display screen, man-machine interface, PLC programming. It has the functions of automatic detection and safety protection. Automatic counting, length counting, can input a variety of sizes, complete automatic shutdown, frequency conversion and energy saving. Adjustable speed. Easy to operate and stable.
High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming 3

2.Feeding structure, high-speed straightening, servo feeding, fast speed, adjustable speed up to 120m / min, high precision, error of plus or minus 0.3mm
High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming 4

3.The straightening system adopts multi wheel straight forward straightening, with high speed and no distortion.

High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming 5


技术参数technical parameter
型号model GTZ1.0-2.5 GTZ 3.0-5.0 GTZ5.0-7.0
线径范围 MM Wire diameter range 1.0-2.5mm 3.0-5.0mm 5.0-7.0mm
输入电压V input voltage 三相 380V 50HZ
适用线材 Wire Range 各类金属线材Various metal wires
切段长度MM Segment length ≥50
切段速度 M/MIN Cutting speed 20-120m/min
生产效率 production efficiency About 400 pieces / min
长度误差 MM Length error ±0.3mm
伺服功率 KW Servo power 5.5KW 11.0KW 15.0KW
设备尺寸MM Equipment size 1500*800*1250 1860*885*1370 2300*900*1550
整机重量KG Machine weight 300KG 500KG 700KG

High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming 6

After sales service:

The main engine is guaranteed for one year, and the vulnerable parts or the high voltage without phase are not guaranteed. Lifelong maintenance and lifelong technical guidance.

Applicable to all wire product factories

High Speed Wire Straightening Cutting Machine Fully Automatic PLC Programming 7



 Our purpose:

no matter new or old models, we must achieve the ultimate!!
Warm tip:

our products are constantly upgraded and improved.

If the color or structure changes, the real object shall prevail.
