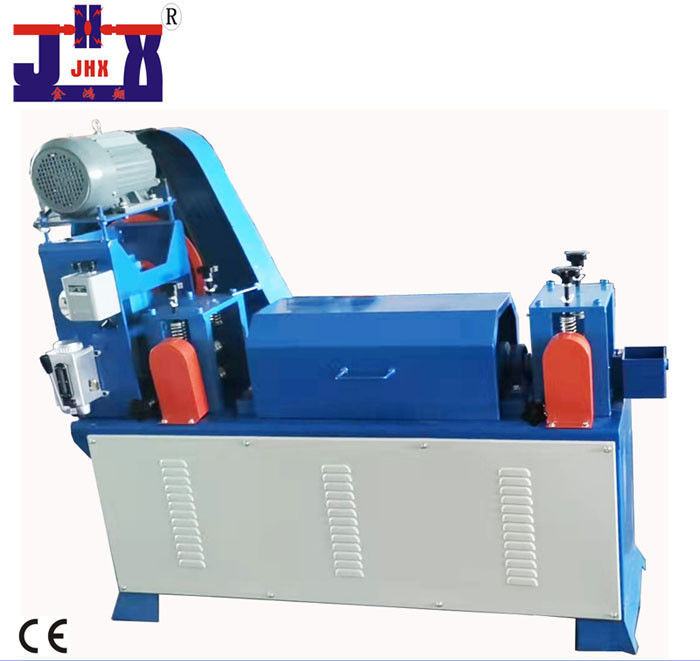

Mechanical Iron Straightening Cutting Machine Automatic Straighten And Cut Wire

Mechanical Iron Straightening Cutting Machine Automatic Straighten And Cut Wire

Mechanical Iron Straightening Cutting Machine Automatic Straighten And Cut Wire
Mechanical Iron Straightening Cutting Machine Automatic Straighten And Cut Wire
Mechanical Iron Straightening Cutting Machine Automatic Straighten And Cut Wire
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: JZ2-5
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export safety wooden case
Delivery Time: 5-10 days or negotiation
Supply Ability: 50 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Straightening And Cutting Machine Core Components: Motor, Cast Iron, Machined Parts
Power: 0.75+1.5KW Warranty: 1 Year, 1 Years
Key Selling Points: Fully Automatic, Low Price, Small Straightening Length Error, Applicable Industries: Widely Used In Hardware, Machinery, Electrical, Instrumentation, Construction And Other Industries.
Weight (KG): 260 Control System: Fully Automatic, Low Price, Small Straightening Length Error,
MOQ: 1 Set Advantage: Cost Effective
Port: Guangzhou
Highlight:

Mechanical Straightening Cutting Machine

,

Iron Straightening Cutting Machine

,

Automatic Straighten And Cut Wire

Iron Wire Straightening And Cutting Machine Mechanical

Performance Characteristics

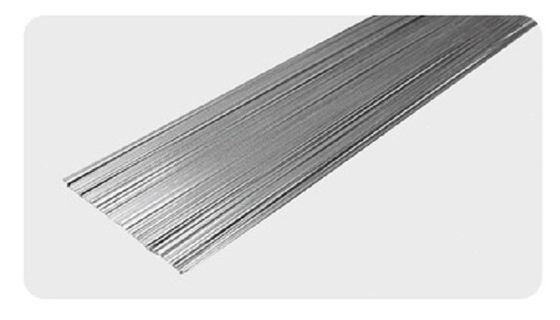

1. It is suitable for straightening and cutting carbon steel wire, stainless steel wire, iron wire, non-ferrous metal wire with
high hardness, etc.
2. Reasonable structure, beautiful appearance and low noise.
3. Mechanical accessories are well made, exquisitely assembled and have long service life.
4. It is divided into various models, large, medium and small, and the input voltage is 380V.
5. Automatic straightening and cutting, wire feeding speed 16-28m / min, length error plus or minus 0.2mm.
6. Cutting length range: 50-2000mm. All copper motor.
7. Main configuration: 1 main machine, 2m fixed length rod and 1 feeding line frame.
8. Vulnerable accessories: 2 cutters, 2 wire holes and 2 sets of straightening blocks (nodular cast iron).

Model
JZ1-2.5
JZ2-5
JZ5-9
JZ9-12
JZ12-16
Max.diameter
φ2.5mm
φ5mm
φ9mm
φ12mm
φ16mm
length
1000mm
2000mm
2000mm
2000mm
2000mm
Straighten deliver link speed
16-25m/min
16-25m/min
16-25m/min
15-18m/min
15-18m/min
Power
0.75+0.55kw
0.75+1.5kw
3+4kw
3+7.5kw
3+10kw
Weight
150kg
265kg
465kg
620kg
820kg
Mechanical Iron Straightening Cutting Machine Automatic Straighten And Cut Wire 0
Mechanical Iron Straightening Cutting Machine Automatic Straighten And Cut Wire 1




Tag:

Mechanical Straightening Cutting Machine,

Hardware Automatic Straightening Machine,

High Speed Wire Straightening And Cutting Machine
