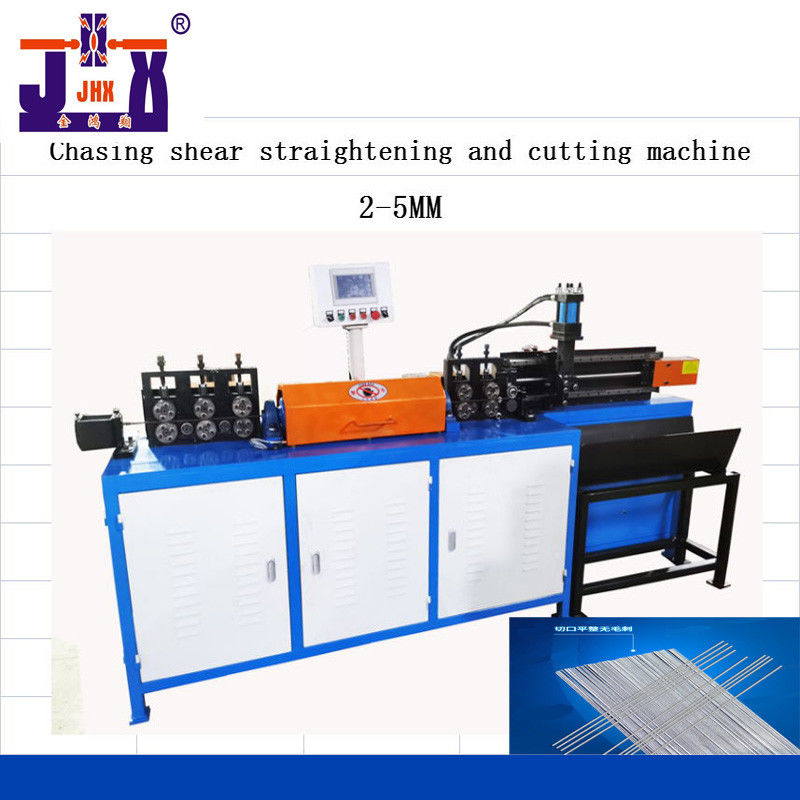

Chasing shear straightening machine, 2-5MM numerical control
summary
The machine's motor+frequency converter feed wire, hydraulic cut-off, servo chasing shear. Servo control of the chasing and shearing mechanism can keep synchronization with the wire at the moment of shearing, which can ensure the accurate length of the shearing wire.
Other names
Chasing shear straightening and cutting machine,
Chasing shear straightening machine,
Tracing shearing machine,
Chasing and shearing straight-line machine
Straightening and cutting machine,
straightening machine, linear machine,
cutting machine,
straightening machine,
1-2.5MM straightening machine,
2-5MM straightening machine,
5-9MM straightening machine,
small straightening machine,
medium straightening machine,
large straightening machine,
Performance characteristics:
1.The high-speed straightening and cutting machine is also called straightening and wire breaking machine and iron wire blanking machine. It is mainly used for straightening and cutting the coil wire or loop wire of various iron wires, stainless steel wires, cold drawn wires, steel wires and other wires.
2. CNC length adjustment is adopted, which is more accurate and less error for straightening and cutting the flexible wire than the traditional gun positioning cutting.

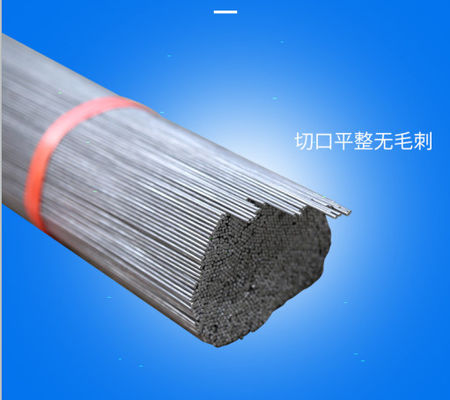

3. The servo motor is used for cutting at the same speed and continuous automatic cutting operation, which solves the problem of blocking materials during cutting by the traditional straightening and cutting machine. The incision is neat and the speed is super fast, which can reach more than 5 times of the traditional machine, realizing high quality and high efficiency.
4.The straightening part is composed of straightening wheels, straightening pressing blocks and bearing seats at both ends, which can complete the straightening of wire rods of various sizes, with high speed and good straightening effect
5.Equipped with automatic feeder, the feeding is controllable and powered, and the high-speed straightening speed is more perfect.
