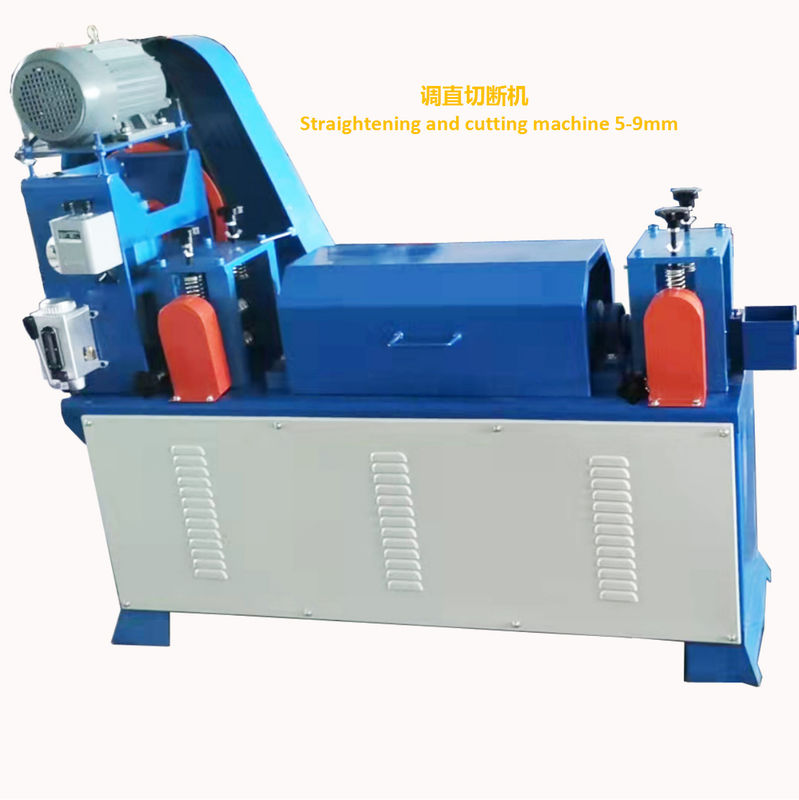

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: JZ5-9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export safety wooden case
Delivery Time: 5-10 days or negotiation
Supply Ability: 50 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Straightening And Cutting Machine Core Components: Motor, Cast Iron, Machined Parts
Power: 3+4KW Warranty: 1 Year, 1 Years
Key Selling Points: Fully Automatic, Low Price, Small Straightening Length Error, Applicable Industries: Widely Used In Hardware, Machinery, Electrical, Instrumentation, Construction And Other Industries.
Weight (KG): 125 Control System: Fully Automatic, Low Price, Small Straightening Length Error,
Highlight:

Linear Steel Wire Straightening Machine

,

9mm Steel Wire Straightening Machine

Straightening Machine, Linear Machine


Performance Characteristics
1. It is suitable for straightening and cutting carbon steel wire, stainless steel wire, iron wire, non-ferrous metal wire with
high hardness, etc.
2. Reasonable structure, beautiful appearance and low noise.
3. Mechanical accessories are well made, exquisitely assembled and have long service life.
4. It is divided into various models, large, medium and small, and the input voltage is 380V.
5. Automatic straightening and cutting, wire feeding speed 16-28m / min, length error plus or minus 0.2mm.
6. Cutting length range: 50-2000mm. All copper motor.
7. Main configuration: 1 main machine, 2m fixed length rod and 1 feeding line frame.
8. Vulnerable accessories: 2 cutters, 2 wire holes and 2 sets of straightening blocks (nodular cast iron).

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 0

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 1
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 2
Other names

Straightening and cutting machine,
straightening machine, linear machine,
cutting machine,
straightening machine,
1-2.5MM straightening machine,
2-5MM straightening machine,
5-9MM straightening machine,
small straightening machine,
medium straightening machine,
large straightening machine,

Detail display
1. CNC precision turning and milling are standardized from each large head, large rotating shaft, slider to small cap. Good coordination of the whole machine to ensure stable operation of the machine.
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 3
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 4
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 5
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 6

2. All kinds of shaft cores are CNC lathes, which are hardened by special process and have smooth surface. Durable and good transmission. Uniform size standard, better matching performance of the whole machine

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 7
3. Cutters, wire holes and straightening blocks are wearing parts. It needs to be replaced at any time. The cutter is welded with tungsten particles and is durable. Wire hole, hardened by special process, durable. Straightening blocks can be selected according to different materials and surface requirements. There are bakelite, tungsten steel and ductile iron.

Cutters,
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 8
wire holes

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 9

straightening blocks

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 10

4.The reverse switch can make the straightening operate forward and backward, and avoid the cost of material transfer when debugging the machine..
Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 11

6.It is equipped with an oil injector. The lubricating oil is loaded into this container at one time. With a slight press from time to time, the lubricating oil can be automatically transported to various places where it is needed, saving time and labor.

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 12
Technical parameter
Model JZ1-2.5 JZ2-5 JZ5-9 JZ9-12 JZ12-16
Max.diameter φ2.5mm φ5mm φ9mm φ12mm φ16mm
Max.length 1000mm 2000mm 2000mm 2000mm 2000mm
Straighten deliver link speed 16-25m/min 16-25m/min 16-25m/min 15-18m/min 15-18m/min
Power 0.55+0.55kw 0.55+1.5kw 1.5+5.5kw 3+7.5kw 3+10kw
Weight 140kg 250kg 450kg 600kg 800kg

Workshop display

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 13

Display after straightening the iron wire

Linear Steel Wire Straightening Machine Fully Automatic 5mm - 9mm 14



 Our purpose:

no matter new or old models, we must achieve the ultimate!!
Warm tip:

our products are constantly upgraded and improved.

If the color or structure changes, the real object shall prevail.

Tag:

Mechanical Straightening Cutting Machine,

Hardware Automatic Straightening Machine,

High Speed Wire Straightening And Cutting Machine
