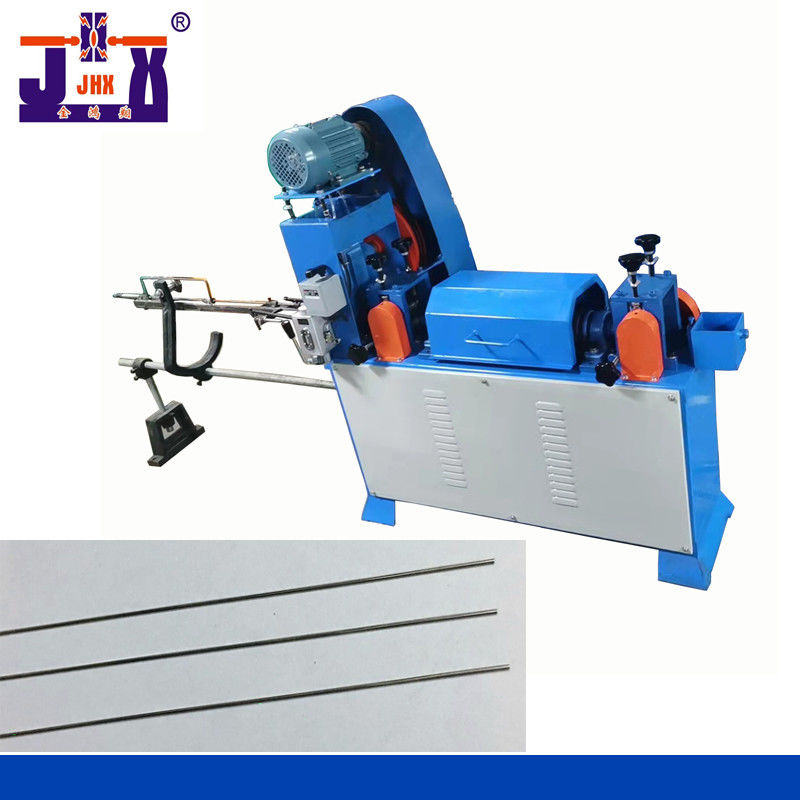

1. It is suitable for straightening and cutting carbon steel wire, stainless steel wire, iron wire, non-ferrous metal wire with
high hardness, etc.
2. Reasonable structure, beautiful appearance and low noise.
3. Mechanical accessories are well made, exquisitely assembled and have long service life.
4. It is divided into various models, large, medium and small, and the input voltage is 380V.
5. Automatic straightening and cutting, wire feeding speed 16-28m / min, length error plus or minus 0.2mm.
6. Cutting length range: 50-2000mm. All copper motor.
7. Main configuration: 1 main machine, 2m fixed length rod and 1 feeding line frame.
8. Vulnerable accessories: 2 cutters, 2 wire holes and 2 sets of straightening blocks (nodular cast iron).
Detail display
1. CNC precision turning and milling are standardized from each large head, large rotating shaft, slider to small cap. Good coordination of the whole machine to ensure stable operation of the machine.
2. All kinds of shaft cores are CNC lathes, which are hardened by special process and have smooth surface. Durable and good transmission. Uniform size standard, better matching performance of the whole machine
3. Cutters, wire holes and straightening blocks are wearing parts. It needs to be replaced at any time. The cutter is welded with tungsten particles and is durable. Wire hole, hardened by special process, durable. Straightening blocks can be selected according to different materials and surface requirements. There are bakelite, tungsten steel and ductile iron.
Cutters,
wire holes
straightening blocks
4.The reverse switch can make the straightening operate forward and backward, and avoid the cost of material transfer when debugging the machine..
