Name: 6mm 3D Wire Forming Machine Automatic Remote Control CE
Brand: Jin Hongxiang
SKU: JX3D2-6
Rating: 4.9 (183 reviews)

Home Products 3D Wire Bending Machine

6mm 3D Wire Forming Machine Automatic Remote Control CE

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	JX3D2-6
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	consult
Packaging Details:	Export wooden case
Delivery Time:	5-10 days or negotiation
Payment Terms:	L/C, T/T
Supply Ability:	20 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	3D Wire Bending Machine	Machine Type:	3D
Control System:	PLC+servo	Applicable Industries:	Hardware,wire Processing
Warranty Of Core Components:	1 Year	Wire Size:	ø2-6mm
No. Of Axis:	7 Axis	Highlight:	3D Wire Bending Machine
Automation:	Automatic	Port:	Shenzhen
Highlight:	6mm 3D Wire Forming Machine , 3D Wire Forming Machine CE

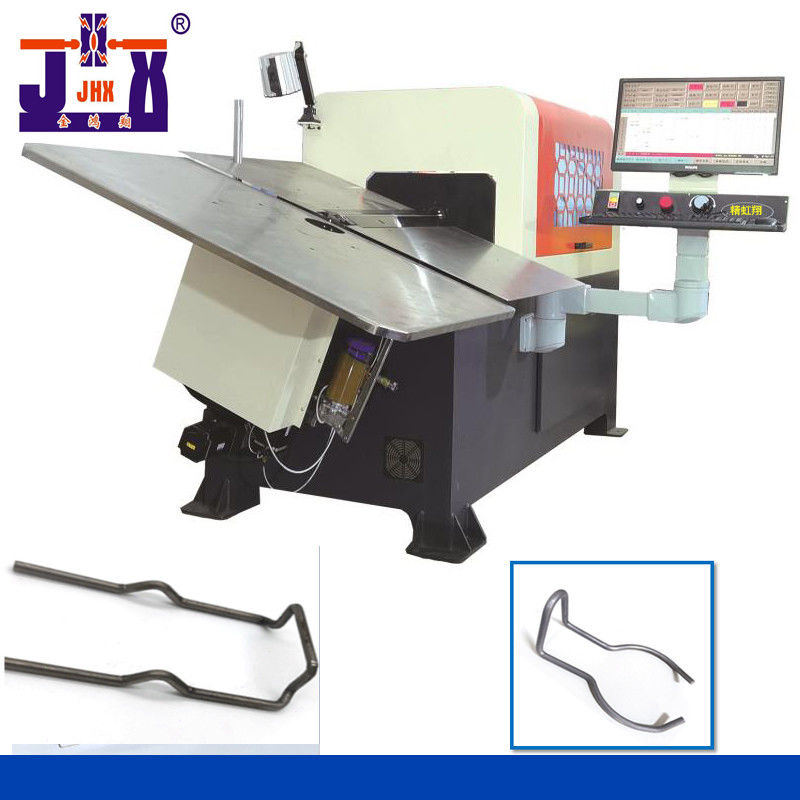

3D Wire forming machine

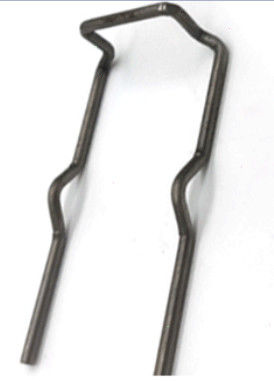

This 3D molding machine is for iron wire with a diameter of 2-6mm

The biggest feature of this machine is that the iron wire rotates and the head is fixed

Performance characteristics

1. The computer starts and shuts down quickly, and the operation is simple and convenient. The computer interface can change the program while adjusting speed while producing.

2. High brand high-speed motor and reducer are used in configuration, and the production speed is more than 25% higher than that of similar products in domestic peers.

3. The production can realize that the angle does not change at the slowest angle, and the production stability is better.

4. Bearings, gears and other important parts are imported brand accessories, with a 365 day warranty, and the equipment is durable and reliable.

5. With high precision, it can be used for wire rod forming products in the range of 2.0-10 mm wire diameter, and the error is reduced to 0.1 mm

6. The matching use of steel wire butt joint machine makes the wire change operation of the machine more convenient.

7. It can be connected to the Internet and WiFi through mobile phone or computer to realize remote control, which makes after-sales service more convenient.

Technical Parameters

Model	JX3D-6	JX3D-8	JX3D-10
No. of axis	380V,7 axis	380V,7 axis	380V,7 axis
Machining wire diameter(MM)	Hard material Φ2.0 ～ Φ4.0 Soft material Φ2.0 ～ Φ6.0	Hard material Φ3.0 ～ Φ6.0 Soft materialΦ3.0 ～ Φ8.0	Hard materialΦ3.0 ～ Φ8.0 Soft materialΦ3.0 ～ Φ10.0
Number of wire feeding wheels	3 groups	3 groups	3 groups
Spool servo motor (KW)	2	2.7	4.5
Head shaft servo motor (KW)	2	2.7	4.5
Cutter shaft servo motor(KW)	1	1	2
Lifting shaft servo motor (KW)	1	1	2
Angle axis servo motor (KW)	1	1	1
Machine size (MM)	3800X1860X1660	3800X1860X1660	3800X1860X1660
