2mm - 8mm 3D Wire Bending Machine Head Rotates For Fan Mesh Cover Accessories

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	JX3D2-8
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	consult
Packaging Details:	Export wooden case
Delivery Time:	5-10 days or negotiation
Payment Terms:	L/C, T/T
Supply Ability:	20 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	3D Wire Bending Machine	Machine Type:	3D
Control System:	PLC+servo	Applicable Industries:	Hardware,wire Processing
Warranty Of Core Components:	1 Year	Wire Size:	ø2-8mm
No. Of Axis:	7 Axis	Highlight:	3D Wire Bending Machine
Automation:	Automatic	Port:	Shenzhen
Input Voltage::	380V50Hz
Highlight:	2mm 3D Wire Bending Machine , 8mm 3D Wire Bending Machine

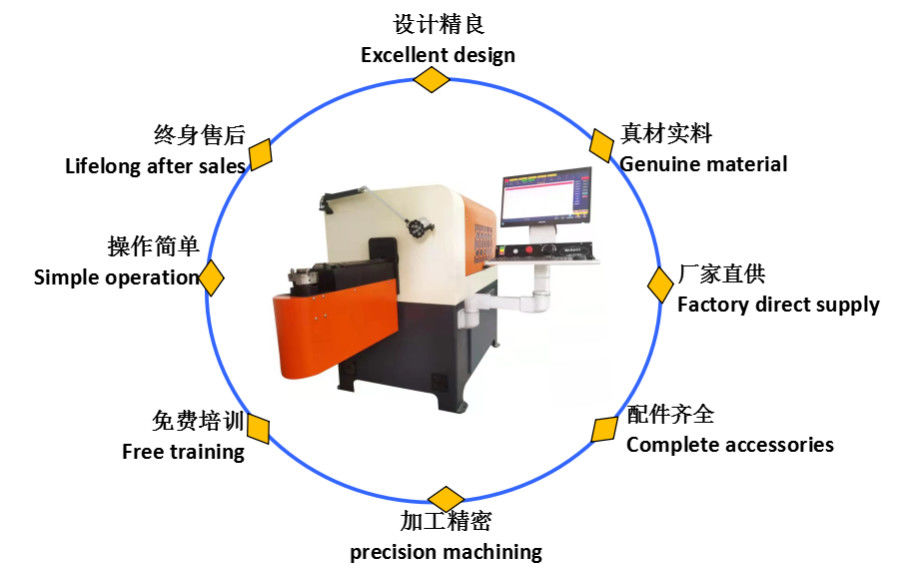

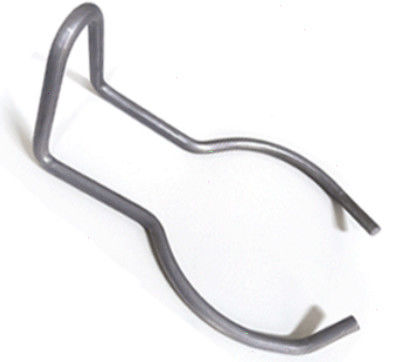

3D Wire bending machine ( head rotates ) for Fan mesh cover accessories

This 3D molding machine is for iron wire with a diameter of 2-8mm

The biggest feature of this machine is that head rotates and the iron wire is fixed

Performance characteristics

1. The computer starts and shuts down quickly, and the operation is simple and convenient. The computer interface can change the program while adjusting speed while producing.

2. High brand high-speed motor and reducer are used in configuration, and the production speed is more than 25% higher than that of similar products in domestic peers.

3. The production can realize that the angle does not change at the slowest angle, and the production stability is better.

Technical Parameters

Model	JX3D-6	JX3D-8	JX3D-10
No. of axis	380V,7 axis	380V,7 axis	380V,7 axis
Machining wire diameter(MM)	Hard material Φ2.0 ～ Φ4.0 Soft material Φ2.0 ～ Φ6.0	Hard material Φ3.0 ～ Φ6.0 Soft materialΦ3.0 ～ Φ8.0	Hard materialΦ3.0 ～ Φ8.0 Soft materialΦ3.0 ～ Φ10.0
Number of wire feeding wheels	3 groups	3 groups	3 groups
Spool servo motor (KW)	2	2.7	4.5
Head shaft servo motor (KW)	2	2.7	4.5
Cutter shaft servo motor(KW)	1	1	2
Lifting shaft servo motor (KW)	1	1	2
Angle axis servo motor (KW)	1	1	1
Machine size (MM)	3800X1860X1660	3800X1860X1660	3800X1860X1660

1. Computer control,

A. adopt speed closed-loop control; The maximum pulse frequency can reach 2MHz.

B system design integrated motherboard and IO board integrated design, simple wiring and simple installation.

C system is equipped with windows interface development. The operation interface is simple and fashionable. Like the operation mode of ordinary computers, the mouse and keyboard are used together to replace the traditional key operation, so as to reduce the risk of key aging and failure.

D. the speed can be modified at any time in the production process, which is easy to operate.

E simple and repeated programming action and probe make its production more accurate and stable, and the controller adopts high-speed probe

F-needle monitoring can respond immediately after 1US the probe is encountered, which can ensure the consistency of each product.

Bearings and guide rails are imported high-quality brands, with special treatment of gear high-frequency grinding. The mechanical operation of the whole machine is durable and wear-resistant
