10mm Round Lines 2D Wire Bending Machine Flat Iron 50m/Min CNC Wire Forming Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	J2D-2-6
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export wooden case
Delivery Time:	5-10 days or negotiation
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets per Month

Contact Now

Detailed Product Description

Function:	Wire Was Bent And Pointed At Both Ends	Control System:	Servo Motor, Planetary Reducer
Applicable Industries:	Wire Processing And Forming	Wire Size:	ø2-10mm
Warranty:	1 Year	Wire Feeding Speed:	50（M/MIN)
Highlight:	10mm 2D Wire Bending Machine , Round Lines 2D Wire Bending Machine , 50m/min CNC Wire Forming Machine

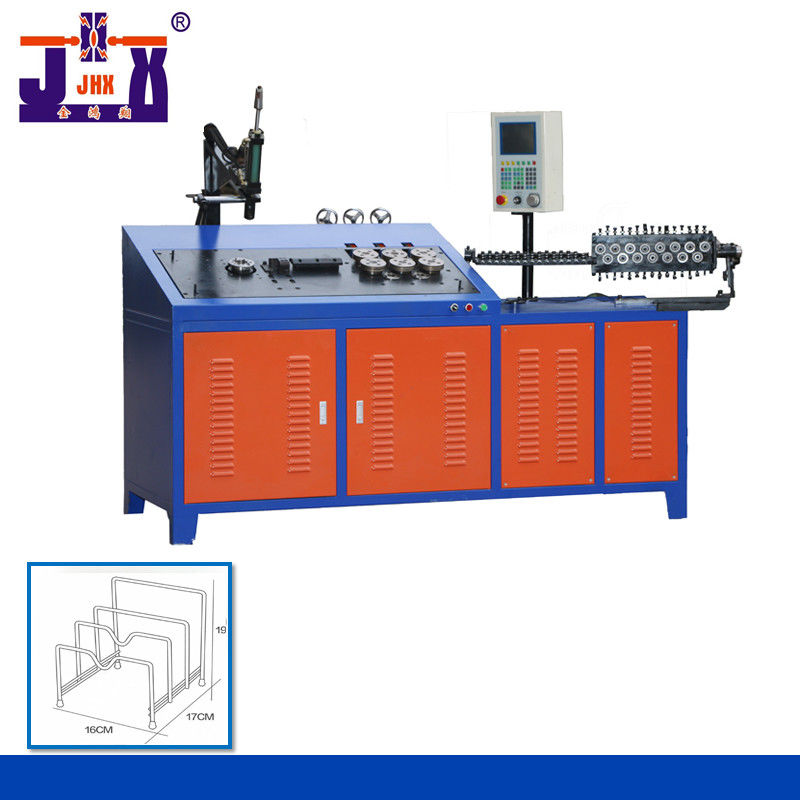

2D bending machine can bend round lines and flat iron

Product Description

2D forming machine is a plane 2D wire bending forming machine. The forming process of wire shapes with different specifications can be realized through various transformations of molds. There are servo feeding + hydraulic cut-off combination, servo feeding + servo cut-off and full servo combination, which can be selected according to the size of actual products to achieve the highest cost performance. According to the needs of products, chamfering, arc punching, punching and other functions can also be added to achieve wider application and use.

Multifunctional, achieve dual functions. Molding, punching, one finish

Widely used in hardware products, such as kitchen and Bathroom Shelves

2D forming machine, flat iron bending machine, bending machine

Technical parameter of 2D molding machine

Model	J2D-2-6	J2D-2-8	J2D-2-10	JS2D-2-6
Number axes	3	3	3	4
Processing line diameter(MM)	Hard wire ø2-4	Hard wire ø2-6	Hard wire ø2-8	Hard wire ø2-4
Processing line diameter(MM)	Flexible wire ø2-6	Flexible wire ø2-8	Flexible wire ø2-10	Flexible wire ø2-6
Number of delivery wheels (Group)	3	3	3	3
Control system	32-bit high-performance processor, can store 2048 files, programming accuracy 0.01	32-bit high-performance processor, can store 2048 files, programming accuracy 0.01	32-bit high-performance processor, can store 2048 files, programming accuracy 0.01	32-bit high-performance processor, can store 2048 files, programming accuracy 0.01
Maximum wire speed(M/MIN)	80	70	60	90
Movement direction	rotating die can be raised and lowered, and the positive and negative motion can be realized	rotating die can be raised and lowered, and the positive and negative motion can be realized	rotating die can be raised and lowered, and the positive and negative motion can be realized	rotating die can be raised and lowered, and the positive and negative motion can be realized
Wire delivery accuracy(mm)	±0.1	±0.1	±0.1	±0.1
Solenoid valve and quantity	nothing	nothing	nothing	3
Input power	380V,50/60HZ	380V,50/60HZ	380V,50/60HZ	380V,50/60HZ
