Full automatic molding machine for the production of barbecue grill
Product Description

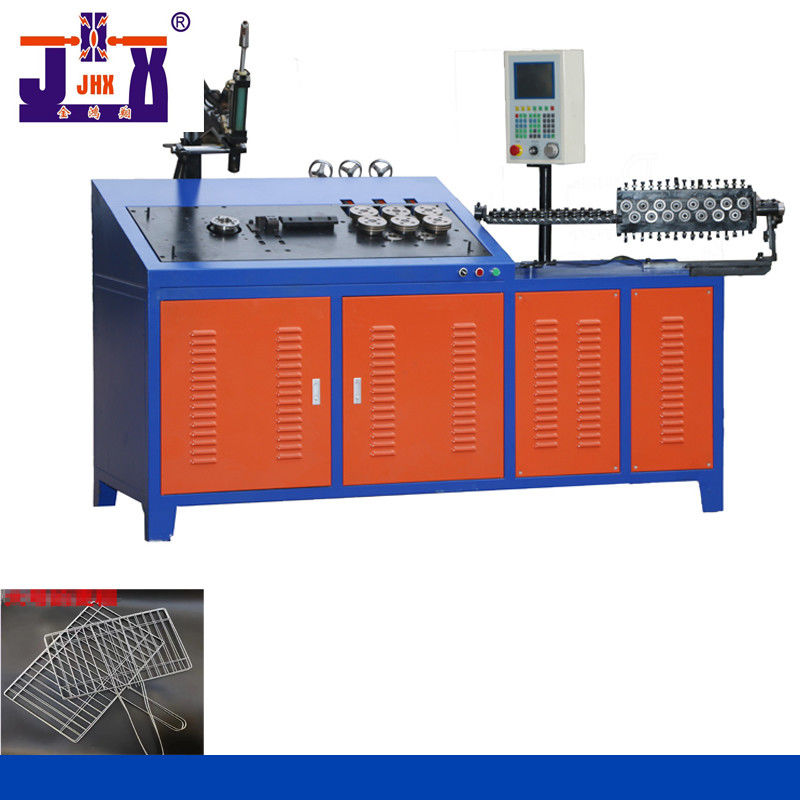

2D forming machine is a plane 2D wire bending forming machine. The forming process of wire shapes with different specifications can be realized through various transformations of molds. There are servo feeding + hydraulic cut-off combination, servo feeding + servo cut-off and full servo combination, which can be selected according to the size of actual products to achieve the highest cost performance. According to the needs of products, chamfering, arc punching, punching and other functions can also be added to achieve wider application and use.
Daily hardware: kitchen display rack, storage rack, egg dispenser, cabinet basket, refrigerator rack, bathroom display rack, etc.
performance characteristics of
1. 4 sets of high precision servo, 2 sets of high precision star helical gear reducer. Reasonable collocation, fast and stable, precision, human nature. CNC precision machining, small error, CNC shaft machining, special grinding processing, precision grinding gear, high precision, high hardness, precision matching.
2. The control system has a variety of manual, semi-automatic, automatic function selection, convenient for one machine. 32-bit high performance processor, can store 2048 files.
3. Rotary head can be a variety of rotation, a variety of positioning pins, making the forming faster, more time saving, reset easier alignment. 4. The independent transformer inside the machine controls the high-power servo to reduce the influence of external voltage on the internal servo to a greater extent.
5. Rear guard aligning wheel 28 combinations, double row wheel multiple groups of bearing steel Settings, better alignment, wheels more durable and durable.
Technical parameter of 2D molding machine
| Model |
J2D-2-6 |
J2D-2-8 |
J2D-2-10 |
JS2D-2-6 |
| Number axes |
3 |
3 |
3 |
4 |
| Processing line diameter(MM) |
Hard wire ø2-4 |
Hard wire ø2-6 |
Hard wire ø2-8 |
Hard wire ø2-4 |
| Flexible wire ø2-6 |
Flexible wire ø2-8 |
Flexible wire ø2-10 |
Flexible wire ø2-6 |
| Number of delivery wheels (Group) |
3 |
3 |
3 |
3 |
| Control system |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
| Maximum wire speed(M/MIN) |
80 |
70 |
60 |
90 |
| Movement direction |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
| Wire delivery accuracy(mm) |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
| Solenoid valve and quantity |
nothing |
nothing |
nothing |
3 |
| Input power |
380V,50/60HZ |
380V,50/60HZ |
380V,50/60HZ |
380V,50/60HZ |
Applicable to various industries
(1) Auto parts: production of child seat frame, door lock pull rod, snake spring, including one snake and two snakes, auto cathead spring, sun visor rail frame, auto seat wire, motorcycle parts, bicycle parts, lift car, etc.
(2)Daily hardware: kitchen display rack, storage rack, egg dispenser, cabinet basket, refrigerator rack, bathroom display rack, etc.
(3)Wire craft products, lighting molding products, fishing gear parts products, wine racks, family fruit plates, garden flower racks, Christmas wire gifts, etc.
(4)Processing of all kinds of cages: bird cage, dog cage, pet cage, breeding cage, rat cage, etc. Clothes hanger, shoe hanger, curtain hook, shelf hook, display hook and other hooks .
(5)Production supplies: storage rack, mesh, hook, display rack, assembly line accessories, etc.
Application show

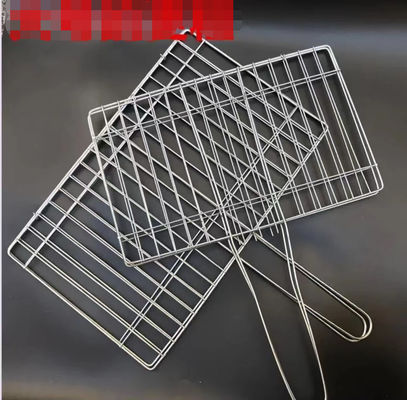

Grill rack with handle
