Molding machine for mirror frame ellipse molding machine basket bending machine
Product Description

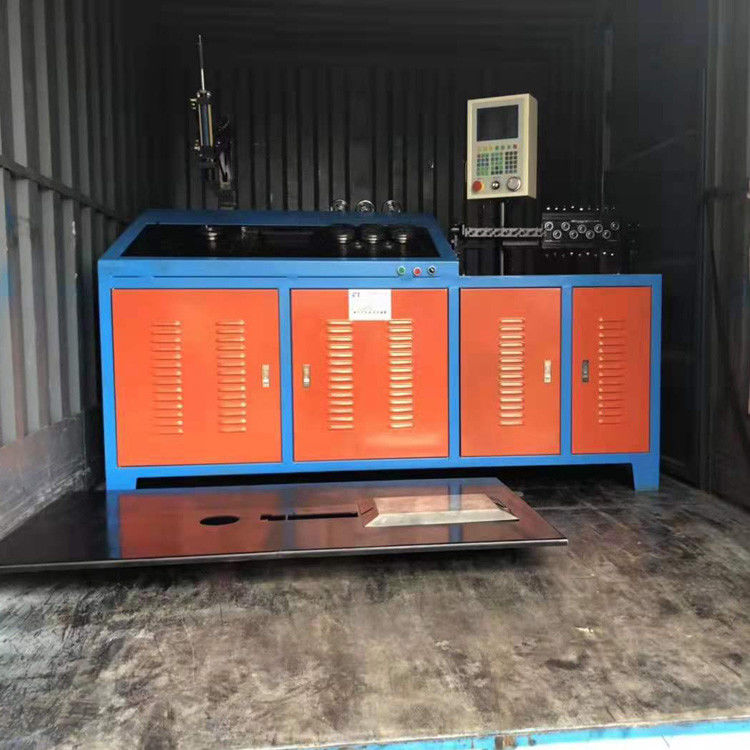

2D forming machine is a plane 2D wire bending forming machine. The forming process of wire shapes with different specifications can be realized through various transformations of molds. There are servo feeding + hydraulic cut-off combination, servo feeding + servo cut-off and full servo combination, which can be selected according to the size of actual products to achieve the highest cost performance. According to the needs of products, chamfering, arc punching, punching and other functions can also be added to achieve wider application and use.
The machine can be used for round wire forming, bending, can also be used for flat wire forming and bending.
performance characteristics of
1. 4 sets of high precision servo, 2 sets of high precision star helical gear reducer. Reasonable collocation, fast and stable, precision, human nature. CNC precision machining, small error, CNC shaft machining, special grinding processing, precision grinding gear, high precision, high hardness, precision matching.
2. The control system has a variety of manual, semi-automatic, automatic function selection, convenient for one machine. 32-bit high performance processor, can store 2048 files.
3. Rotary head can be a variety of rotation, a variety of positioning pins, making the forming faster, more time saving, reset easier alignment. 4. The independent transformer inside the machine controls the high-power servo to reduce the influence of external voltage on the internal servo to a greater extent.
5. Rear guard aligning wheel 28 combinations, double row wheel multiple groups of bearing steel Settings, better alignment, wheels more durable and durable.
Technical parameter of 2D molding machine
| Model |
J2D-2-6 |
J2D-2-8 |
J2D-2-10 |
JS2D-2-6 |
| Number axes |
3 |
3 |
3 |
4 |
| Processing line diameter(MM) |
Hard wire ø2-4 |
Hard wire ø2-6 |
Hard wire ø2-8 |
Hard wire ø2-4 |
| Flexible wire ø2-6 |
Flexible wire ø2-8 |
Flexible wire ø2-10 |
Flexible wire ø2-6 |
| Number of delivery wheels (Group) |
3 |
3 |
3 |
3 |
| Control system |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
| Maximum wire speed(M/MIN) |
80 |
70 |
60 |
90 |
| Movement direction |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
| Wire delivery accuracy(mm) |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
| Solenoid valve and quantity |
nothing |
nothing |
nothing |
3 |
| Input power |
380V,50/60HZ |
380V,50/60HZ |
380V,50/60HZ |
380V,50/60HZ |
2D forming machine, which can form flat iron into box, ellipse, polygonal angle, convenient and intelligent.
detailed description
(1) Outline structure layout:
The plane design of the equipment is specialized in the frame type, star type and other 2-dimensional shape shaping design of round wire, flat wire and other wire rod. The servo + spring case is installed with the fuselage, and is equipped with CNC finishing, CNC finishing, and the whole machine is flexible, stable, efficient and labor-saving.
(2)Each device part:
The equipment can straighten the protective wire + clamp + accurate wire feeding + forming + cutting at one go.
(3)Forming accuracy control:
The equipment can be programmed to control the setting of part accuracy requirements, so as to meet the different forming requirements of diffe
(4)Memory systemrent wires and different shapes.
The equipment has memory storage function, which can save the processed formula. When re processing, it only needs to directly transfer the formula to complete the wire forming processing, and 2048 files can be stored for programming.
Production product display

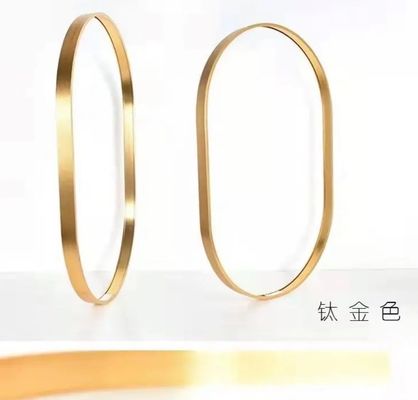

Flat iron oval mirror frame
flat iron square frame
