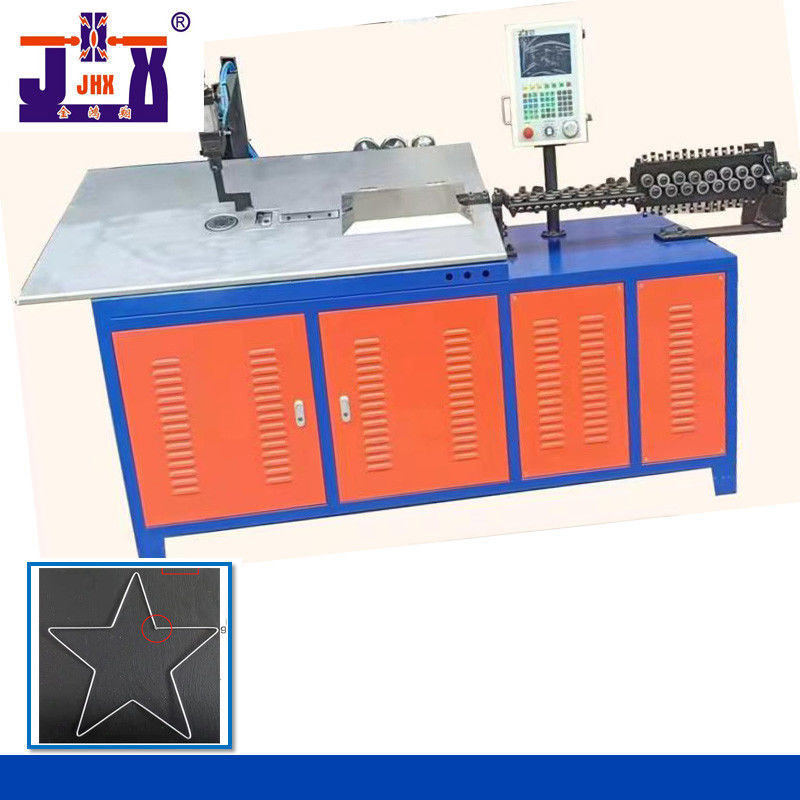

2D Automatic Moulding Machine Curved Flower For Pentagram Polygon Molding

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	J2D-2-6
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export wooden case
Delivery Time:	5-10 days or negotiation
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets per Month

Contact Now

Detailed Product Description

Function:	Bend The Iron Wire Into Various Shapes	Control System:	Servo Motor, Planetary Reducer
Applicable Industries:	Round Line/flat Iron Molding, Curved Flower,	Wire Size:	ø2-8mm
Warranty:	1 Year	Wire Feeding Speed:	70 （M/MIN)
Material:	Carbon Steel Wire, Stainless Steel
Highlight:	Automatic Moulding Machine Curved Flower , 2D Automatic Moulding Machine

Automatic 2D Wire Bending Machine

Product Description

2D forming machine is a plane 2D wire bending forming machine. The forming process of wire shapes with different specifications can be realized through various transformations of molds. There are servo feeding + hydraulic cut-off combination, servo feeding + servo cut-off and full servo combination, which can be selected according to the size of actual products to achieve the highest cost performance. According to the needs of products, chamfering, arc punching, punching and other functions can also be added to achieve wider application and use.

Wire craft products, lighting molding products, fishing gear parts products, wine racks, family fruit plates, garden flower racks, Christmas wire gifts, etc.

Technical parameter of 2D molding machine

Model	J2D-2-6	J2D-2-8	J2D-2-10	JS2D-2-6
Number axes	3	3	3	4
Processing line diameter(MM)	Hard wire ø2-4	Hard wire ø2-6	Hard wire ø2-8	Hard wire ø2-4
Processing line diameter(MM)	Flexible wire ø2-6	Flexible wire ø2-8	Flexible wire ø2-10	Flexible wire ø2-6
Number of delivery wheels (Group)	3	3	3	3
Control system	32-bit high-performance processor, can store 2048 files, programming accuracy 0.01	32-bit high-performance processor, can store 2048 files, programming accuracy 0.01	32-bit high-performance processor, can store 2048 files, programming accuracy 0.01	32-bit high-performance processor, can store 2048 files, programming accuracy 0.01
Maximum wire speed(M/MIN)	80	70	60	90
Movement direction	rotating die can be raised and lowered, and the positive and negative motion can be realized	rotating die can be raised and lowered, and the positive and negative motion can be realized	rotating die can be raised and lowered, and the positive and negative motion can be realized	rotating die can be raised and lowered, and the positive and negative motion can be realized
Wire delivery accuracy(mm)	±0.1	±0.1	±0.1	±0.1
Solenoid valve and quantity	nothing	nothing	nothing	3
Input power	380V,50/60HZ	380V,50/60HZ	380V,50/60HZ	380V,50/60HZ

Applicable to various industries

1.Wire craft products, lighting molding products, fishing gear parts products, wine racks, family fruit plates, garden flower racks, Christmas wire gifts, etc.

2.Processing of all kinds of cages: bird cage, dog cage, pet cage, breeding cage, rat cage, etc. Clothes hanger, shoe hanger, curtain hook, shelf hook, display hook and other hooks .

Guest product display

Five-point iron art pen holder

2D Automatic Moulding Machine Curved Flower For Pentagram Polygon Molding 0
