Place of Origin: | Guangdong, China |
Brand Name: | Jin Hongxiang |
Certification: | CE |
Model Number: | JX3D2-6 |
Document: | Product Brochure PDF |
Minimum Order Quantity: | 1 set |
---|---|
Price: | consult |
Packaging Details: | Export wooden case |
Delivery Time: | 5-10 days or negotiation |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Sets per Month |

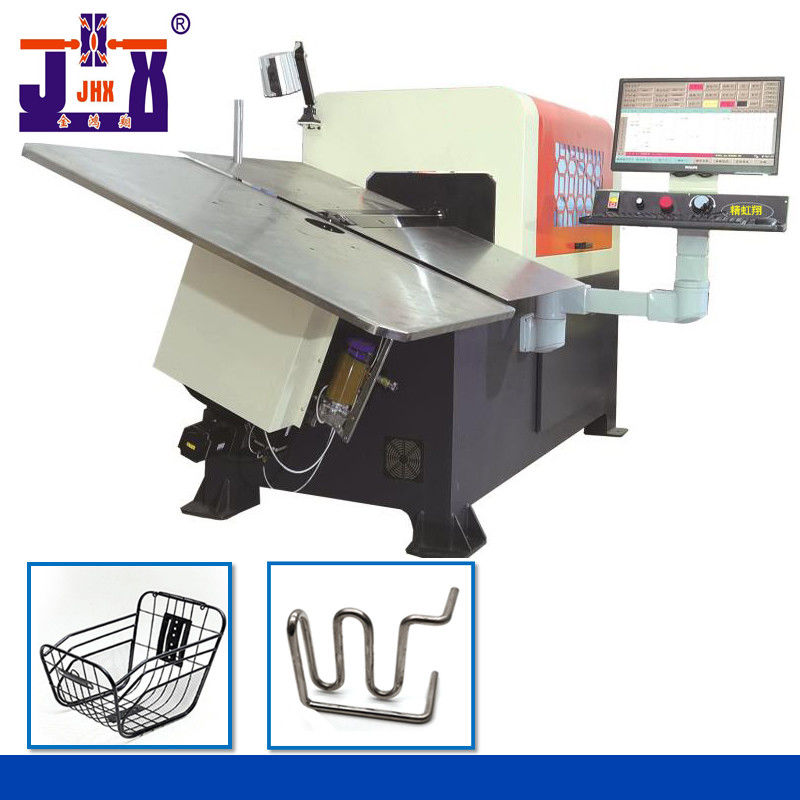

Product Name: | 3D Wire Bending Machine Computer Control Molding Machine | Machine Type: | 3D Wire Bending Machine |
---|---|---|---|
Control System: | PLC | Applicable Industries: | Hardware,wire Processing |
Warranty Of Core Components: | 1 Year | Wire Size: | ø2-6mm |
No. Of Axis: | 7 Axis | Highlight: | 3D Wire Bending Machine |
Automation: | Automatic | Weight (KG): | 1800 |
Port: | Shenzhen | ||
Highlight: | 2.7KW 3D Wire Bending Machine,3D Wire Bending Machine Computer Control |
Technical Parameters
Model | JX3D-6 | JX3D-8 | JX3D-10 |
No. of axis | 380V,7 axis | 380V,7 axis | 380V,7 axis |
Machining wire diameter(MM) | Hard material Φ2.0 ~ Φ4.0 Soft material Φ2.0 ~ Φ6.0 |
Hard material Φ3.0 ~ Φ6.0 Soft materialΦ3.0 ~ Φ8.0 |
Hard materialΦ3.0 ~ Φ8.0 Soft materialΦ3.0 ~ Φ10.0 |
Number of wire feeding wheels | 3 groups | 3 groups | 3 groups |
Spool servo motor (KW) | 2 | 2.7 | 4.5 |
Head shaft servo motor (KW) | 2 | 2.7 | 4.5 |
Cutter shaft servo motor(KW) | 1 | 1 | 2 |
Lifting shaft servo motor (KW) | 1 | 1 | 2 |
Angle axis servo motor (KW) | 1 | 1 | 1 |
Machine size (MM) | 3800X1860X1660 | 3800X1860X1660 | 3800X1860X1660 |
Q: What is your normal lead time?
A. If there is stock, our company usually receives the payment for goods and delivers them within a week. If it needs to be customized, the delivery cycle is usually 3-4 weeks after receiving the deposit.
Contact Person: Jin Hongxiang
Tel: 13925780098
