Name: Laser Welding Arm Robot Fully Automatic 1500MM Maximum Boom Extension
Brand: Dongguan Jinghongxiang Automation Equipment Co., Ltd.
SKU: 1510
Availability: InStock

Home Products Welding Arm Robot

Laser Welding Arm Robot Fully Automatic 1500MM Maximum Boom Extension

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	1510
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export safety wooden case
Delivery Time:	5-10 days or negotiation
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Applicable Industries:	Building Pipes, Process Products, Automobile Sheet Metal,
Warranty Of Core Components:	1 Year	Core Components:	PLC, Precision Servo, Robot Body, Welding Power Supply, Control Cabinet
Product Name:	Industrial 6 Axis Arm Welding Robot	Warranty:	1 Year
Key Selling Points:	Flexible, Stable, Durable And High Precision	Weight (KG):	170
Voltage:	380V	Current:	50-60HZ
Dimensions:	550785410mm	Usage:	Welding
Advantage:	High Speed Stability	Operation Type:	Software
Maximum Boom Extension:	1500MM	Feature:	Fully Automatic，Arbitrary Action Programming
Function:	Automatic Welding	Input Power:	380V,50/60HZ
After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support	Port:	Shenzhen,China
Highlight:	1500MM Welding Arm Robot , Laser Welding Arm Robot , Fully Automatic Laser Welding Robot

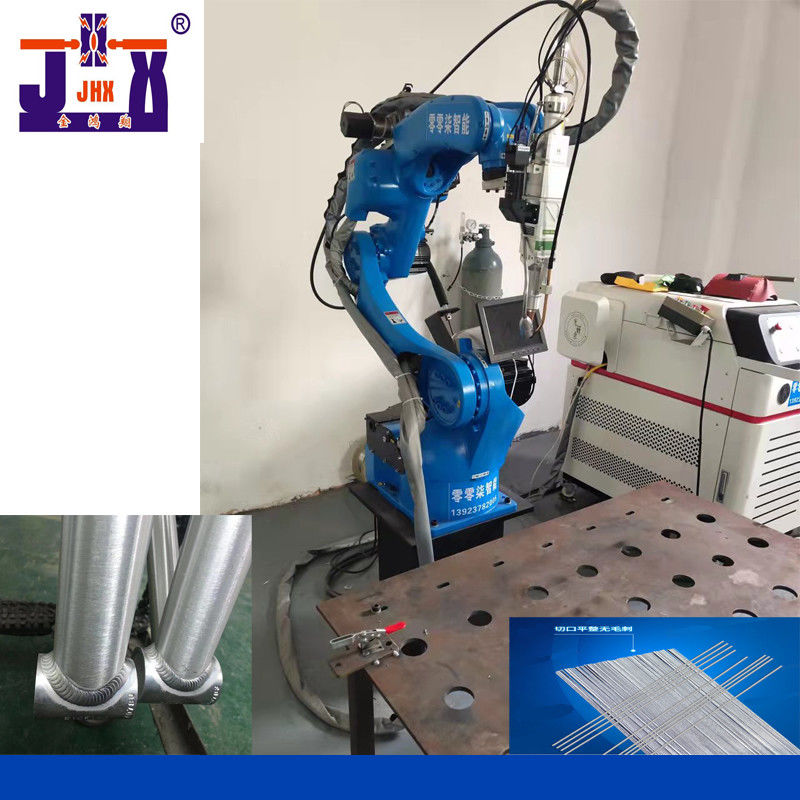

Laser welding robot welding robot

Laser Welding Arm Robot Fully Automatic 1500MM Maximum Boom Extension 0

The welding products are aluminum, stainless steel and electronic metal components,

which are thin or small and require higher welding requirements. Generally,

laser welding robots can be used.

The best configuration of this laser welding robot:

Configuration Name	Auspicious feelings	quantity
Robot body	Karnopu. CRP-RH14-10-W, 1.44m arm span, load 20KG	1 set
Control cabinet	CRP (G4 generation) drive control integrated control cabinet, six axis linkage.	1 set
Protective transformer	Anti interference isolation protection transformer built in the controller	1PS
Interconnect line	6m connecting control line	1 group
Programming the teaching pendant	6-meter line teaching pendant, touch digital display	1PS
Start control box	Standard start stop control box, 6m line	1PS
Laser welding machine	Han's Yueming 1500W laser welding machine	1 set
Welding machine accessories package	Welding machine accessories package	1 group
Laser head	Special for automatic welding (Shanghai Enhanced Laser)	1 group
water tank	Built in water tank	1 set
Robot mounting base	Welding and machining of 20mm thick carbon steel plate	1PS

Performance characteristics of robot body

· The arm span is 1.44 meters. The design is highly compact and can be flexibly installed on the ground or upside down.

· With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications.

· The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.

· The robot body adopts highly flexible special cable.

· Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI.

· The robot body is with dual-circuit gas pipe to meet the welding demand.

· The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch.

· Highly flexible welding cable is built-in.

Welding workpiece

Laser Welding Arm Robot Fully Automatic 1500MM Maximum Boom Extension 1

ROBOT BODY TECHNICAL PARAMETERS

Model		CRP-RH14-10-W
Arm form		Vertical multiple joints
Degree of freedom		6 axis
Maximum payload		10KG
Repeated positioning accuracy		±0.08mm
Maximum reaching distance		1454mm
Robot body weight		170KG
Installation mode		Ground,upside down mounting,wall mounting
Maximum travel	axis 1	Ground/upside down mounting-167°~167°,wall mounting -30°~30°
	axis 2	-155°~90°
	axis 3	-175°~240°
	axis 4	-190°~190°
	axis 5	-105°~130°
	axis 6	-105°~130°
Maximum axis speed	axis 1	169°/s
	axis 2	169°/s
	axis 3	169°/s
	axis 4	301°/S
	axis 5	220°/s
	axis 6	743°/S
Allowable torque	axis 4	20N.m
	axis 5	5 20N.m
	axis 6	11N.m
Allowable moment of inertia	axis 4	0.5kg.m2
	axis 5	0.5kg.m2
	axis 6	0.16kg.m2
Installation environment	ambient temperature	0~45℃
	relative humidity	20~80%(No condensation)
	vibration	Under 0.5G
	Others	Robot installation must be away from: Flammable or corrosive liguids or gases . Electrical sources of interference
Ip level		Body IP54,wrist IP67
Advantage features		Compact structure,high speed,high precision,high expansibility and easy operation,
Application		Welding.cutting.assembly.handling, marking.grinding
