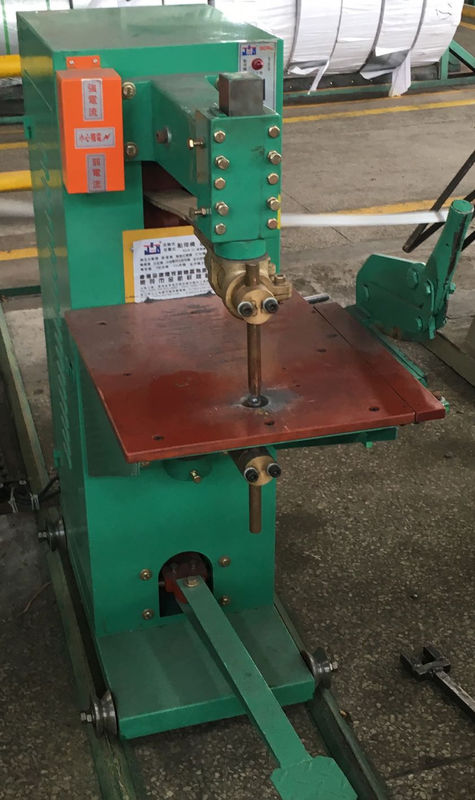

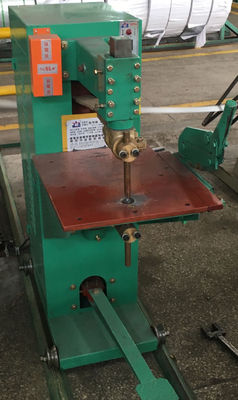

Performance characteristicsFoot pedal spot welder
This spot welding machine is the simplest and fully mechanical. It is carefully designed and equipped with perfect accessories. Within the welding range, the welding effect can be achieved very well. Compared with the pneumatic spot welding machine, it requires foot strength when working. The operator will work harder and the efficiency will be slower.
This machine is mainly used for spot welding
Other names
JA-35KVA,JA-50KVA Foot pedal spot welder, foot pedal welding machine, small spot welder
Spot welding machine, air pressure spot welding machine, row welding machine,
touch welding machine, butt welding machine, pneumatic spot welding machine,
multi spot welding machine, medium frequency spot welding machine, welding machine, pneumatic
welding machine, high-power spot welding machine, precision spot welding machine,
sheet metal spot welding machine, wire spot welding machine, resistance spot welding machine,
nut spot welding machine, AC spot welding machine, three-phase spot welding machine,
stainless steel spot welding machine, galvanized sheet spot welding machine, Customized spot welding machine,
special spot welding machine, battery spot welding machine, Taiwan spot welding machine,
mesh spot welding machine, multi cylinder spot welding machine, gantry spot welding machine,
wire mesh spot welding machine, DC spot welding machine, small spot welding machine,
Performance characteristics
1. Compact design, convenient operation, simple use and stable performance.
2. The red copper welding transformer has low no-load loss, strong and stable power output.
3. Imported integrated bidirectional thyristor control, IC circuit control board, stable welding current output.
4. The lower cast copper can move left and right and avoid the position, which is convenient for welding special-shaped products.
Detailed description
1. Switching between strong current and weak current, and 99 level adjustment of time and current can be carried out at the same time. The strength can be subdivided, and the current can be adjusted to the extreme and the best state.
2. For some special-shaped products, the lower arm can be offset to meet the ideal welding needs.
technical parameters
| 型号 |
额定容量 |
输入电压 |
臂长 |
电极行程 |
最大焊接能力 |
装箱尺寸L*W*H |
| Model |
Rated power KVA |
Input voltage V |
Reach MM |
stroke of electrode MM |
Welding ability MM |
Packing size MM |
| JA-35 |
35KVA |
380V/50HZ |
480 |
50 |
A3,2.5+2.5 φ8+φ8 |
950*500*1350 |
| JA-50 |
50KVA |
380V/50HZ |
480 |
50 |
A3,3+3 φ10+φ10 |
1050*500*1400 |
Spot welding display
Warm tip: our products are constantly upgrading and adjusting.
If the pictures displayed are different from the real object,
the real object shall prevail, and will be confirmed when placing the order.
