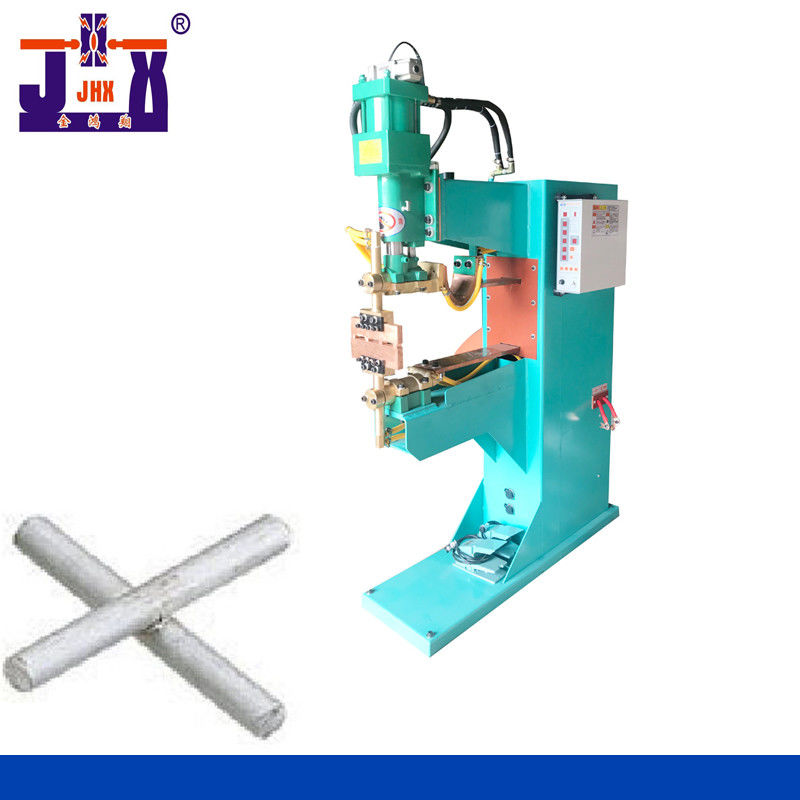

Air pressure spot welder rowing welding machine 80KVA
Other names
Spot welder, air pressure spot welder, row welder, touch welder,
butt welder, pneumatic spot welder, multi spot welder, medium frequency spot welder,
welder, pneumatic welder, high-power spot welder, precision spot welder,
iron sheet spot welder, iron wire spot welder, resistance spot welder,
nut spot welder, AC spot welder, 3-phase spot welder, spot welding machine,
stainless steel spot welder, galvanized plate spot welder, customized spot welder,
special spot welder, Battery spot welder, Taiwan spot welder,
mesh spot welder, multi cylinder spot welder, gantry spot welder,
wire mesh spot welder, DC spot welder, small spot welder,
Spot welding machine, air pressure spot welding machine, row welding machine,
touch welding machine, butt welding machine, pneumatic spot welding machine,
multi spot welding machine, medium frequency spot welding machine, welding machine, pneumatic
welding machine, high-power spot welding machine, precision spot welding machine,
sheet metal spot welding machine, wire spot welding machine, resistance spot welding machine,
nut spot welding machine, AC spot welding machine, three-phase spot welding machine,
stainless steel spot welding machine, galvanized sheet spot welding machine, Customized spot welding machine,
special spot welding machine, battery spot welding machine, Taiwan spot welding machine,
mesh spot welding machine, multi cylinder spot welding machine, gantry spot welding machine,
wire mesh spot welding machine, DC spot welding machine, small spot welding machine,
Definition of spot welding machine and row welding machine:
The spot welding machine is the same as the main machine of the row welding machine, but the effect to be achieved is different due to the different electrodes of the row welding mold.
The row welding machine is installed with the row welding die
The spot welding machine is installed with the spot welding die,
The choice of which mold to use is different from the product.
Row welding die
Spot welding die
Product Description
Performance characteristics
1. Cylinder direct pressure mechanism, good follow-up performance, fast welding speed, combined cylinder, Taiwan AS2410 large flow solenoid valve.Taiwan AS2410 solenoid valve has strong suction and sensitive response. It is ideal for continuous row welding of mesh.
2. All red copper water cooling temperature control device of transformer has the advantages of long service life, low noise, safety and convenient use.
A. Taiwan transformer features: sufficient capacity, greater welding force and stronger conductivity.
B. Water circulation cooling, which can be used within the rated range to ensure 24 hours of operation.
C. Moreover, the temperature control device can work overload and automatically cut off power to protect the whole machine from being affected.
3.The water-saving forced cooling mode is adopted, and the main circuit adopts high-power SCR contactless switch, with high conductivity and low power loss , High temperature automatic protection.

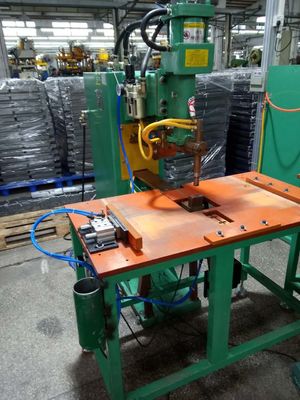

A corner of the spot welder warehouse
Technical parameters:
| Technical parameters: |
|
|
|
|
|
|
| Model |
Rated power KVA |
Input voltage V |
Nominal frequency HZ |
Maximum short circuit current A |
arm length mm |
ectrode travel MM |
Cooling water volume |
Weight KG |
|
| |
| JD-60 |
60 |
380 |
50/60 |
22000 |
600 |
50 |
10 |
350 |
|
| JD-80 |
80 |
380 |
50/60 |
28000 |
600 |
50 |
10 |
400 |
|
| JD-100 |
100 |
380 |
50/60 |
30000 |
600 |
50 |
10 |
430 |
|
| JD-120 |
120 |
380 |
50/60 |
32000 |
600 |
50 |
12 |
460 |
|
| JD-150 |
150 |
380
|
50/60 |
34000 |
600 |
50 |
12 |
500 |
|
| JDX-35 |
35 |
380
|
50/60 |
15000 |
400 |
50 |
/ |
197 |
|
| JDX-50 |
50 |
380 |
50/60 |
20000 |
400 |
50 |
/ |
248 |
|
We always attach great importance to product quality. Before leaving the factory, it will be fully aged and debugged.
And we always adhere to the principle of "providing customers with better quality, better price and better service.
