Name: 4KW Rings Making Machine 26m/S Flat Iron Full Automatic Looping Machine
Brand: Dongguan Jinghongxiang Automation Equipment Co., Ltd.
SKU: J2-8MM
Availability: InStock

Home Products Wire Forming Machine

4KW Rings Making Machine 26m/S Flat Iron Full Automatic Looping Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	J2-8MM
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export safety wooden case
Delivery Time:	5-10 days or negotiation
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Circle Making And Butt Welding Machine	Machine Type:	Circle Making + Butt Welding, Multi-function
Core Components:	Taiwan Water-cooled Transformer, Electric Bay Solenoid Valve, PLC Programming, Precision Servo	Applicable Industries:	Environmental Protection Dust Removal Framework, Fan Net Cover, Cement Pole, Lampshade, Handicrafts, Flowerpot Rack, Luggage Fastener, Daily Hardware Kitchen And Sanitary Appliances.
Control System:	PLC Programming + Human-machine Interface Display.	Overall Dimension:	220142127cm
Feature:	Fully Automatic	Function:	Counting/ Sound-light Alarm/ Monitoring
Circle Diameter Error:	±0.3mm	Port:	Shenzhen,China
Highlight:	4KW Rings Making Machine , Rings Making Machine 26m/s

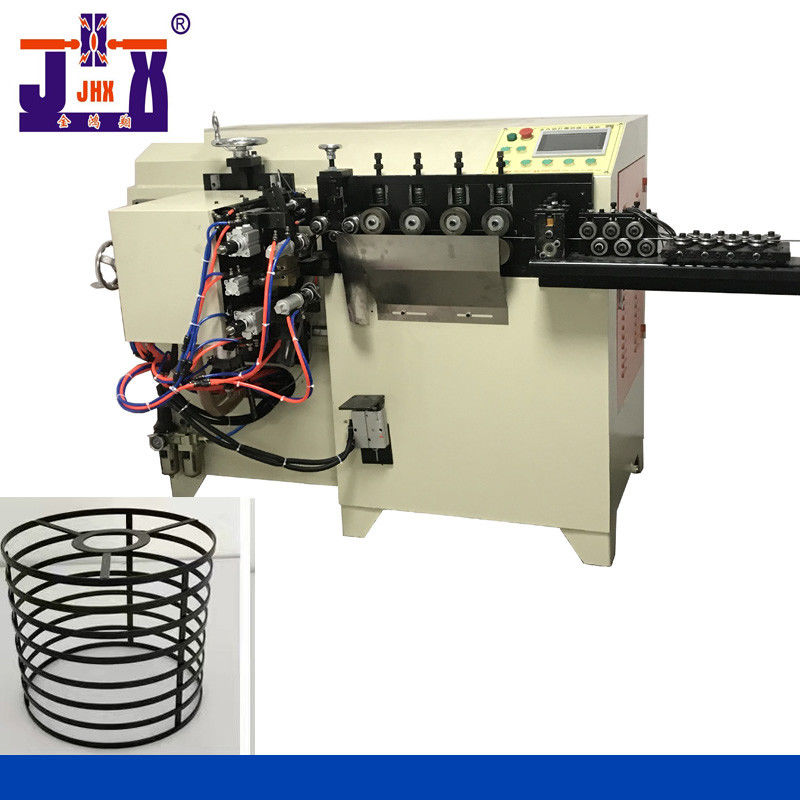

Flat iron full-automatic looping machine (looping + butt welding)

Lampshade is a necessary equipment in the industry. It can be fully automatic looping + butt welding. Or it can only circle automatically. It can also be a semicircle of a circle or an arc.

The material can be round bar or flat iron, which can be used for multiple purposes.

Loop + butt welding, multi-functional, fully automatic.

Application scope

Servo circular butt welding machine is used in lampshade industry

Nickname

All in one machine for circle and butt welding,
Automatic steel circle o and bending with welder wire ring making butt welding machine
Circle making and butt welding machine
2-8MM Grill Fan Guard Wire Ring Butt Welding Making Machine

Performance characteristics

1. Servo feeding, fast looping speed, hydraulic cutter, simple and fast, great strength. Making circle + butt welding can be completed at one time, saving time, labor and labor.

2. The whole machine CNC lathe + CNC milling has good coordination and precision. It is more guaranteed than similar products, faster and more efficient.

3. PLC programming + man-machine interface, simple debugging, Omron 2000 pulse encoder, more accurate identification. Beginners are easy to get started. It also has forward and backward, automatic and manual functions, which is convenient for debugging. Debugging OK is direct and automatic without human supervision.

Structural details are displayed one by one:

1. Horizontal and vertical two groups of straightening guard wheel, thickened and hardened, double ball. The safety wire is well straightened and more durable.

2 . 4 groups, 8 wire feeding forming wheels, with large force, stability and wear resistance. There are only 3 groups and 6 similar machines from other manufacturers. Moreover, the processing is accurate, and the surface of the trunking is specially smooth.

Assembly workshop of all-in-one circular butt welding machine

Technical parameters of fast looping butt welding machine

Technical parameter
Model	JQDH2-6MM	JQDH2-8MM
Wire diameter range (MM)	Hard wire2-4MM Flexible cord2-6MM	Hard wire2-6MM Flexible cord2-8MM
Servo device	2.6KW+7B	2.3KW+10B
Hydraulic device	1.5KW	2.2KW
Maximum wire feeding speed(M/MIN)	85	52
Circle diameter range(MM)	50-600	50-600
Circle diameter Tolerance (MM)	±0.3	±0.3
Welding power	50KVA	60KVA
Pneumatic brand	Taiwan SNS	Taiwan SNS
Solenoid valve brand	Taiwan,AirTAC	Taiwan,AirTAC
Overall dimension (CM)	220142127	220142127

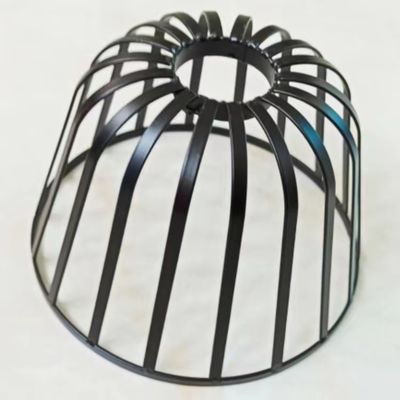

Display of lampshade circle

4KW Rings Making Machine 26m/S Flat Iron Full Automatic Looping Machine 4
