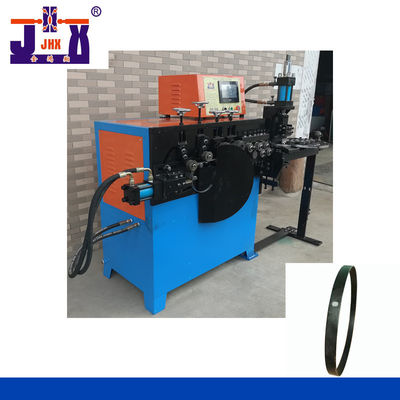

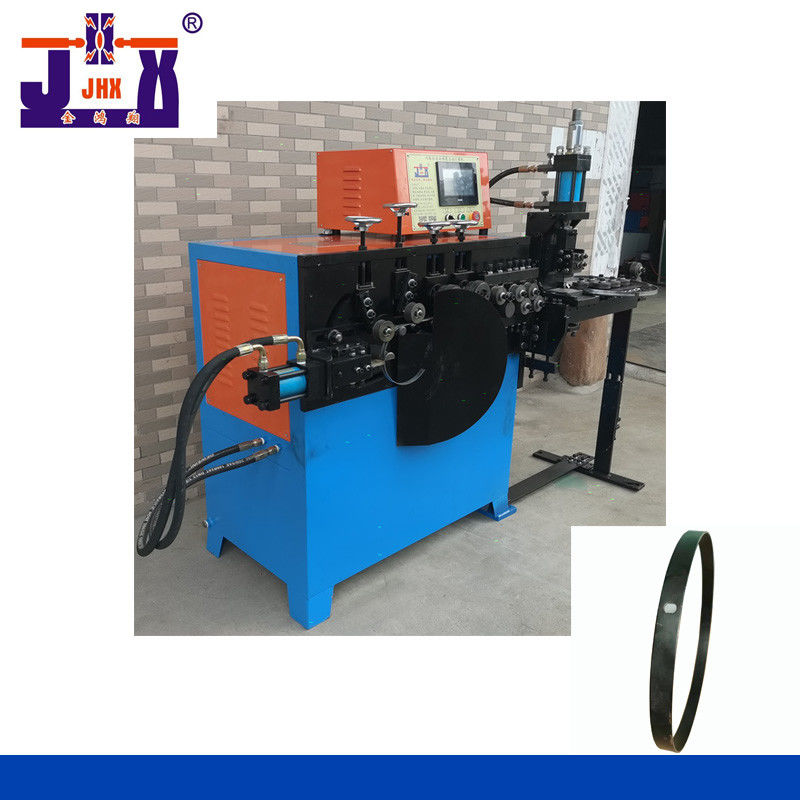

Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine

Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine

Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine
Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine
Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: JQ2-10MM
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 5-10 days or negotiatio
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Function: Flat Iron Ring Punching Control System: PLC Display Screen, Servo Motor
Applicable Industries: Lampshade, Fan Net Cover, Commodity Shelf, Flower Rack, Wire Size: ø2-10mm
Warranty: 1 Year Advantage: High Effecient Simple Operation
Port: Shenzhen ,China Control: Numerical Control
Voltage: 380V/50HZ
Highlight:

Flat Iron Automatic Ring Making Machine

,

Servo Motor Automatic Ring Making Machine

,

Servo Motor Auto Punching Machine

Full automatic flat iron circle mechanism with double functions of circle + punching

This type of looping machine is customized, and it needs to lift the standard drawing or physical object of the product. Customized as required.



Servo feeding is fast and accurate, hydraulic cutting, cutting iron wire more forcefully

Performance characteristics



1. Servo feeding - fast and accurate, speed adjustable. Oil pressure cut-off - large force, easy and powerful line cutting.

Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine 0

2. PLC programming + man-machine interface display, easy to operate and learn. High end servo + planetary reducer.

Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine 1

3. Precision CNC turning and milling. Gear, shaft, wire feeding wheel and other finishing, special hardening, surface grinding and polishing, high hardness, smooth and wear-resistant.

Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine 2

Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine 3

Technical parameters of servo circle machine

Model JQ2-6MM JQ2-8MM JQ2-10MM
Wire diameter range (MM) Hard wire2-4 lexible cord2-6 Hard wire2-6 Flexible cord2-8 Hard wire2-8 Flexible cord2-10
Servo device 1KW+5B 1.5KW+5B 2.3KW+10B
Hydraulic device 1.5KW 2.2KW 2.2KW
Maximum wire feeding speed(M/MIN) 70 60 50
Circle diameter range (MM) 50-800 50-800 50-800
Circle diameter Tolerance MM ＜±0.3 ＜±0.3 ＜±0.3
Axis 2 2 4
Dimension(CM) 145*75*142 145*75*142 175*75*142



Multi function looping machine, widely used, can be used as long as it is a flat iron circle or a flat iron circular arc

Convenient setting, automatic counting, punching cylinder can be one cylinder or two cylinders according to needs

Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine 4

Production workshop display
Flat Iron Automatic Ring Making Machine Servo Motor Auto Punching Machine 5
