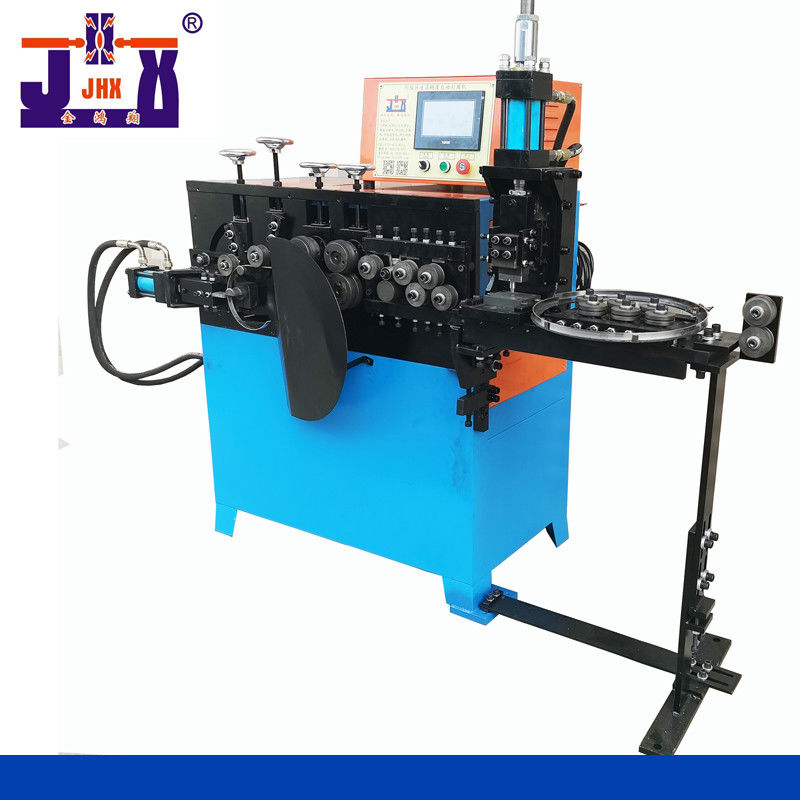

High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine

High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine

High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine
High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine
High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: JQ2-10MM
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 5-10 days or negotiatio
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Function: Flat Iron Ring Punching Control System: PLC Display Screen, Servo Motor
Applicable Industries: Lampshade, Fan Net Cover, Commodity Shelf, Flower Rack, Wire Size: ø2-10mm
Warranty: 1 Year Advantage: High Efficient Simple Operation
Port: Shenzhen ,China Control: Numerical Control
Voltage: 380V/50HZ
Highlight:

High Effecient Automated Punching Machine

,

Servo Automated Punching Machine

,

Flat Iron Ring Punching Machine

Servo looping machine, looping and punching machine

This type of looping machine is customized, and it needs to lift the standard drawing or physical object of the product. Customized as required.



Performance characteristics



1. Servo feeding - fast and accurate, speed adjustable. Oil pressure cut-off - large force, easy and powerful line cutting.

High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine 0

2. PLC programming + man-machine interface display, easy to operate and learn. High end servo + planetary reducer.

High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine 1

3. Precision CNC turning and milling. Gear, shaft, wire feeding wheel and other finishing, special hardening, surface grinding and polishing, high hardness, smooth and wear-resistant.

High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine 2

High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine 3

Technical parameters of servo circle machine

Model JQ2-6MM JQ2-8MM JQ2-10MM
Wire diameter range (MM) Hard wire2-4 lexible cord2-6 Hard wire2-6 Flexible cord2-8 Hard wire2-8 Flexible cord2-10
Servo device 1KW+5B 1.5KW+5B 2.3KW+10B
Hydraulic device 1.5KW 2.2KW 2.2KW
Maximum wire feeding speed(M/MIN) 70 60 50
Circle diameter range (MM) 50-800 50-800 50-800
Circle diameter Tolerance MM ＜±0.3 ＜±0.3 ＜±0.3
Axis 2 2 4
Dimension(CM) 145*75*142 145*75*142 175*75*142

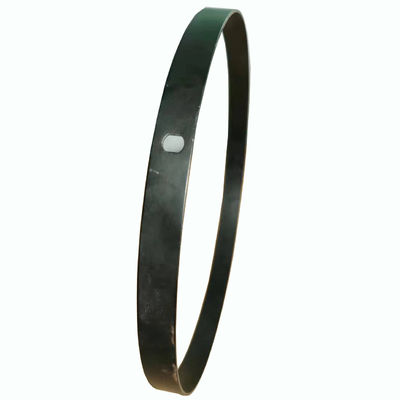

Multi function looping machine, widely used, can be used as long as it is a flat iron circle or a flat iron circular arc

For bicycle rims

High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine 4







Tag:

Flat Iron Steel Wire Ring Making Machine,

Hardware Ring Manufacturing Machine,

Multifunction Circle Making Machine
