Full automatic flat iron forming machine, three functions
Product Description
2D forming machine is a plane 2D wire bending forming machine. The forming process of wire shapes with different specifications can be realized through various transformations of molds. There are servo feeding + hydraulic cut-off combination, servo feeding + servo cut-off and full servo combination, which can be selected according to the size of actual products to achieve the highest cost performance. According to the needs of products, chamfering, arc punching, punching and other functions can also be added to achieve wider application and use.
Multifunctional, achieve dual functions. Molding, punching, one finish
Forming + punching U-shape + punching round hole
It needs to be customized according to the requirements of customers, or according to the specifications of flat iron.
Enlarge the oil circuit system and add two oil cylinders, one for punching U-shape and the other for punching round hole. Fully automatic, simple and convenient.
Widely used in all walks of life

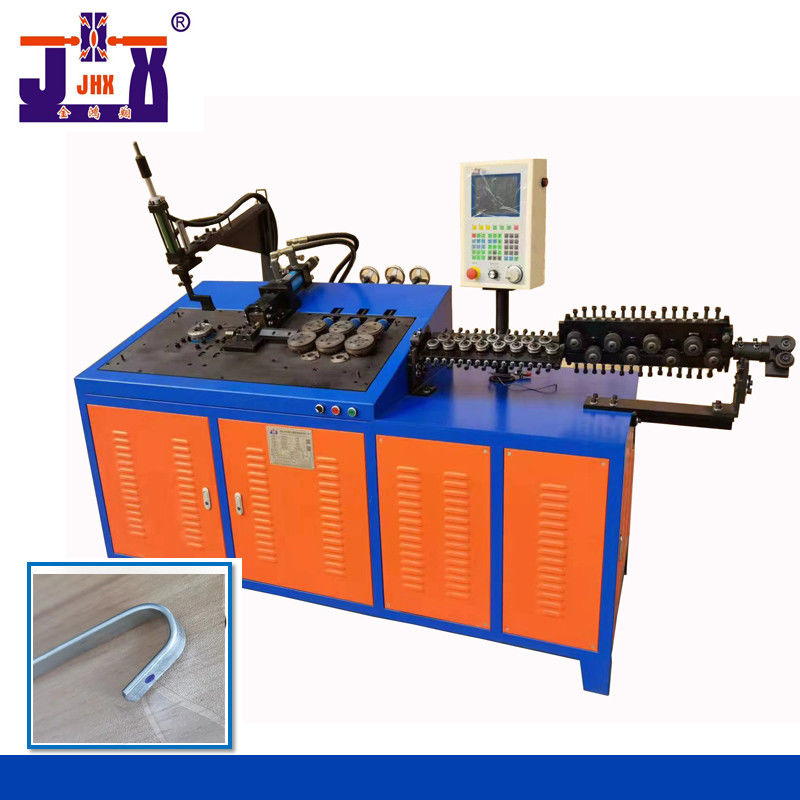

Product display
Nickname:2D molding machine, 2D wire bending machine, 2D frame bending machine, plane bending machine, bending machine, frame folding machine, basket bending machine, wire bending machine
Performance characteristics
(1) Outline structure layout:
The plane design of the equipment is specialized in the frame type, star type and other 2-dimensional shape shaping design of round wire, flat wire and other wire rod. The servo + spring case is installed with the fuselage, and is equipped with CNC finishing, CNC finishing, and the whole machine is flexible, stable, efficient and labor-saving.
2) Each device part:
The equipment can straighten the protective wire + clamp + accurate wire feeding + forming + cutting at one go.
(3) Forming accuracy control:
The equipment can be programmed to control the setting of part accuracy requirements, so as to meet the different forming requirements of different wires and different shapes.
(4) Memory system
The equipment has memory storage function, which can save the processed formula. When re processing, it only needs to directly transfer the formula to complete the wire forming processing, and 2048 files can be stored for programming.
(5) Control system:
The control system of 2D NC wire rod forming machine has a variety of manual, semi-automatic and full-automatic function choices, which is convenient for one machine to be multi-purpose. 32-bit high-performance processor, capable of storing 2048 files
Programming, precision 0.01, control precision 0.01 (screw shaft precision up to 0.001), powerful function, reduce equipment investment and reduce production intensity.
Technical parameter of 2D molding machine
| Model |
J2D-2-6 |
J2D-2-8 |
J2D-2-10 |
JS2D-2-6 |
| Number axes |
3 |
3 |
3 |
4 |
| Processing line diameter(MM) |
Hard wire ø2-4 |
Hard wire ø2-6 |
Hard wire ø2-8 |
Hard wire ø2-4 |
| Flexible wire ø2-6 |
Flexible wire ø2-8 |
Flexible wire ø2-10 |
Flexible wire ø2-6 |
| Number of delivery wheels (Group) |
3 |
3 |
3 |
3 |
| Control system |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
| Maximum wire speed(M/MIN) |
80 |
70 |
60 |
90 |
| Movement direction |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
rotating die can be raised and lowered, and the positive and negative motion can be realized |
| Wire delivery accuracy(mm) |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
| Solenoid valve and quantity |
nothing |
nothing |
nothing |
3 |
| Input power |
380V,50/60HZ |
380V,50/60HZ |
380V,50/60HZ |
380V,50/60HZ |
三,Applicable to various industries
1. Wire craft products, lighting molding products, fishing gear parts products, wine racks, family fruit plates, garden flower racks, Christmas wire gifts, etc.,
2. Processing of all kinds of cages: bird cage, dog cage, pet cage, breeding cage, rat cage, etc. Clothes hanger, shoe hanger, curtain hook, shelf hook, display hook and other hooks
3. Production supplies: storage rack, mesh, hook, display rack, assembly line accessories, etc
Product Application Display
Flat iron hook

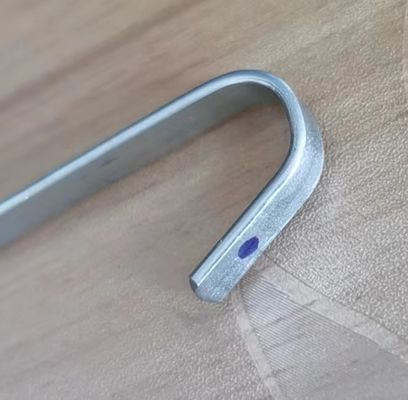

Bending and punching round holes, punching u-arc display
Production workshop display
