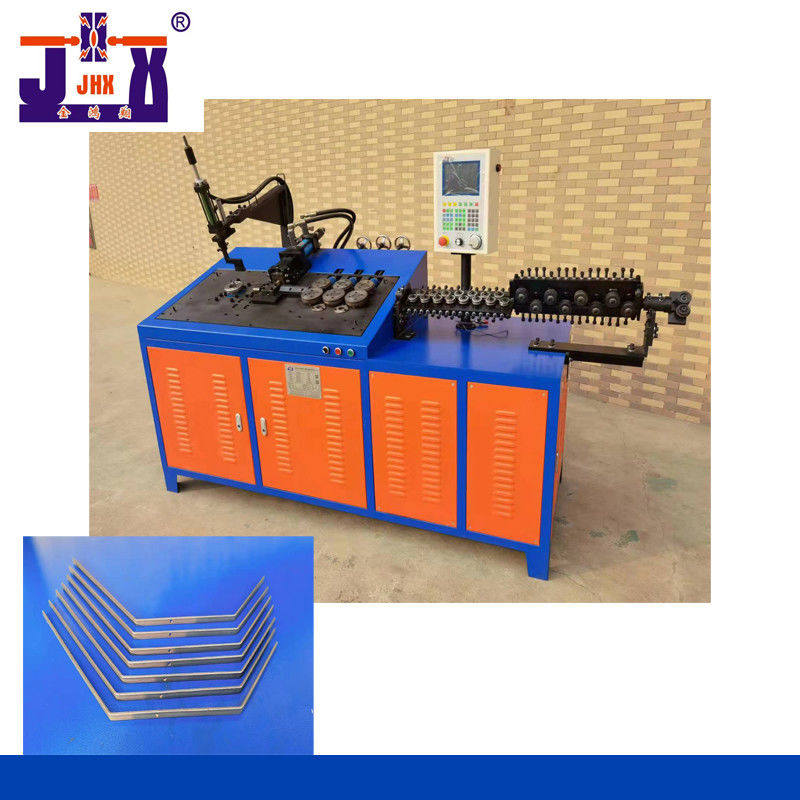

Flat Iron Steel 2D Wire Bending Machine 60HZ 380V Automatic For Punching Round Hole

Flat Iron Steel 2D Wire Bending Machine 60HZ 380V Automatic For Punching Round Hole

  • Flat Iron Steel 2D Wire Bending Machine 60HZ 380V Automatic For Punching Round Hole
  • Flat Iron Steel 2D Wire Bending Machine 60HZ 380V Automatic For Punching Round Hole
Flat Iron Steel 2D Wire Bending Machine 60HZ 380V Automatic For Punching Round Hole
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: J2D-2-6
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 5-10 days or negotiation
Payment Terms: L/C, T/T
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Function: Forming + Round Hole Making Control System: Servo Motor, Planetary Reducer
Applicable Industries: Wire Processing And Forming Wire Size: 1.5*6,2*8
Warranty: 1 Year Wire Feeding Speed: 50(M/MIN)
Highlight:

2D Wire Bending Machine 60HZ

,

Flat Iron 2D Wire Bending Machine

,

Steel Wire Bending Machine 380V

Full automatic wire bending machine flat iron forming machine,Bending + punching round hole



Product Description

2D forming machine is a plane 2D wire bending forming machine. The forming process of wire shapes with different specifications can be realized through various transformations of molds. There are servo feeding + hydraulic cut-off combination, servo feeding + servo cut-off and full servo combination, which can be selected according to the size of actual products to achieve the highest cost performance. According to the needs of products, chamfering, arc punching, punching and other functions can also be added to achieve wider application and use.

Multifunctional, achieve dual functions. Molding, punching, one finish

Bending + punching round hole

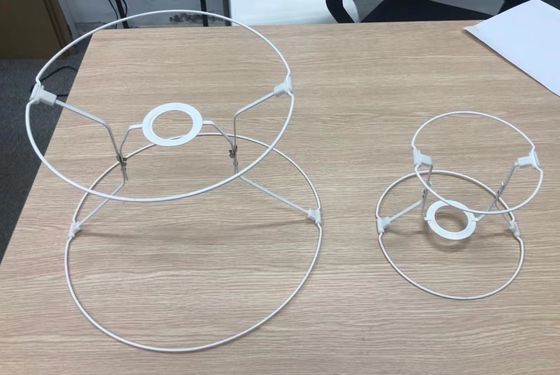

Widely used for lampshade products and hanging lighting



Technical parameter of 2D molding machine



Model J2D-2-6 J2D-2-8 J2D-2-10 JS2D-2-6
Number axes 3 3 3 4
Processing line diameter(MM) Hard wire ø2-4 Hard wire ø2-6 Hard wire ø2-8 Hard wire ø2-4
Flexible wire ø2-6 Flexible wire ø2-8 Flexible wire ø2-10 Flexible wire ø2-6
Number of delivery wheels (Group) 3 3 3 3
Control system 32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 32-bit high-performance processor, can store 2048 files, programming accuracy 0.01
Maximum wire speed(M/MIN) 80 70 60 90
Movement direction rotating die can be raised and lowered, and the positive and negative motion can be realized rotating die can be raised and lowered, and the positive and negative motion can be realized rotating die can be raised and lowered, and the positive and negative motion can be realized rotating die can be raised and lowered, and the positive and negative motion can be realized
Wire delivery accuracy(mm) ±0.1 ±0.1 ±0.1 ±0.1
Solenoid valve and quantity nothing nothing nothing 3
Input power 380V,50/60HZ 380V,50/60HZ 380V,50/60HZ 380V,50/60HZ



Customer production workshop



Flat Iron Steel 2D Wire Bending Machine 60HZ 380V Automatic For Punching Round Hole 0

Product Application Display

Bending + punchi

Lighting hardware flat iron products

Flat Iron Steel 2D Wire Bending Machine 60HZ 380V Automatic For Punching Round Hole 1



Flat Iron Steel 2D Wire Bending Machine 60HZ 380V Automatic For Punching Round Hole 2
