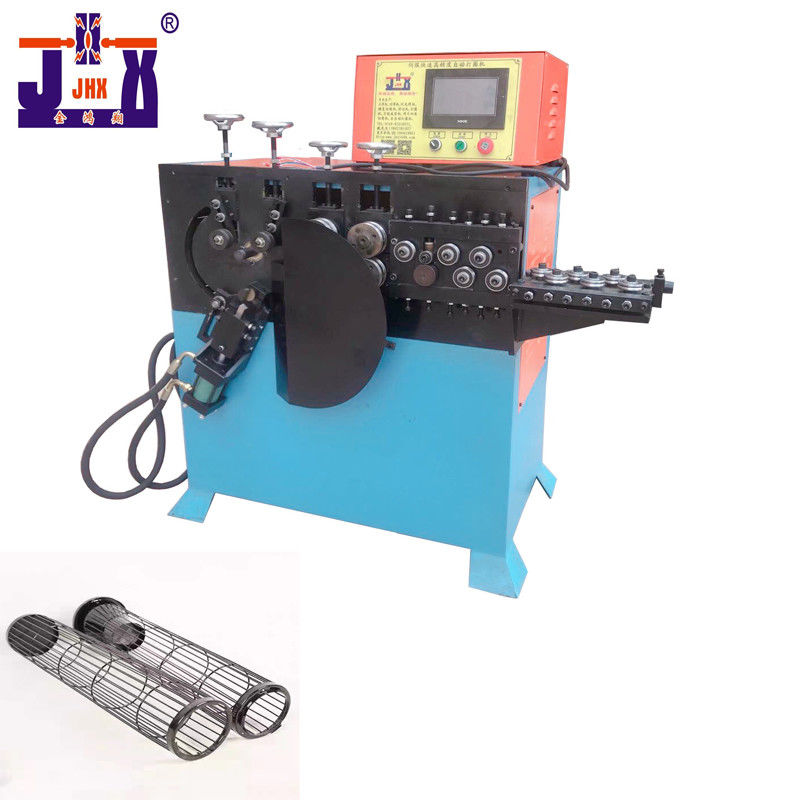

Looping Automatic Ring Making Machine For Dedusting Framework

Looping Automatic Ring Making Machine For Dedusting Framework

Looping Automatic Ring Making Machine For Dedusting Framework
Looping Automatic Ring Making Machine For Dedusting Framework
Looping Automatic Ring Making Machine For Dedusting Framework
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: JQ2-8MM
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 5-10 days or negotiatio
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Function: Wire Circle Forming, Making,looping Control System: PLC Display Screen, Servo Motor
Applicable Industries: Lampshade, Fan Net Cover, Commodity Shelf, Flower Rack, Wire Size: ø2-8mm
Warranty: 1 Year Advantage: High Effecient Simple Operation
Port: Shenzhen ,China Control: Numerical Control
Voltage: 380V/50HZ
Highlight:

Looping Automatic Ring Making Machine

,

Dedusting Framework Automatic Ring Making Machine

Automatic round machine for dedusting framework


Performance characteristics



1. Servo motor feeding, fast speed, high accuracy, and the circle forming accuracy is within plus or minus 0.2mm. And the workpiece is stable for a long time. There are about 50 circles with a diameter of 200 mm per minute.

2. Hydraulic cutting, strong force and neat incision. Precision machining, special treatment of mechanical shaft, high precision, high toughness.

3. PLC programming, human-machine interface display, simple circle input, easy operation, easy to learn, very humanized.



Technical parameters of servo circle machine

Model JQ2-6MM JQ2-8MM JQ2-10MM
Wire diameter range (MM) Hard wire2-4 lexible cord2-6 Hard wire2-6 Flexible cord2-8 Hard wire2-8 Flexible cord2-10
Servo device 1KW+5B 1.5KW+5B 2.3KW+10B
Hydraulic device 1.5KW 2.2KW 2.2KW
Maximum wire feeding speed(M/MIN) 70 60 50
Circle diameter range (MM) 50-800 50-800 50-800
Circle diameter Tolerance MM ＜±0.3 ＜±0.3 ＜±0.3
Axis 2 2 4
Dimension(CM) 145*75*142 145*75*142 175*75*142

It is widely used in all walks of life, especially in the lighting industry

Sample display circle

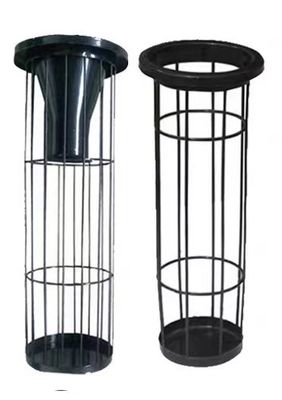

Dust removal framework
Looping Automatic Ring Making Machine For Dedusting Framework 0
