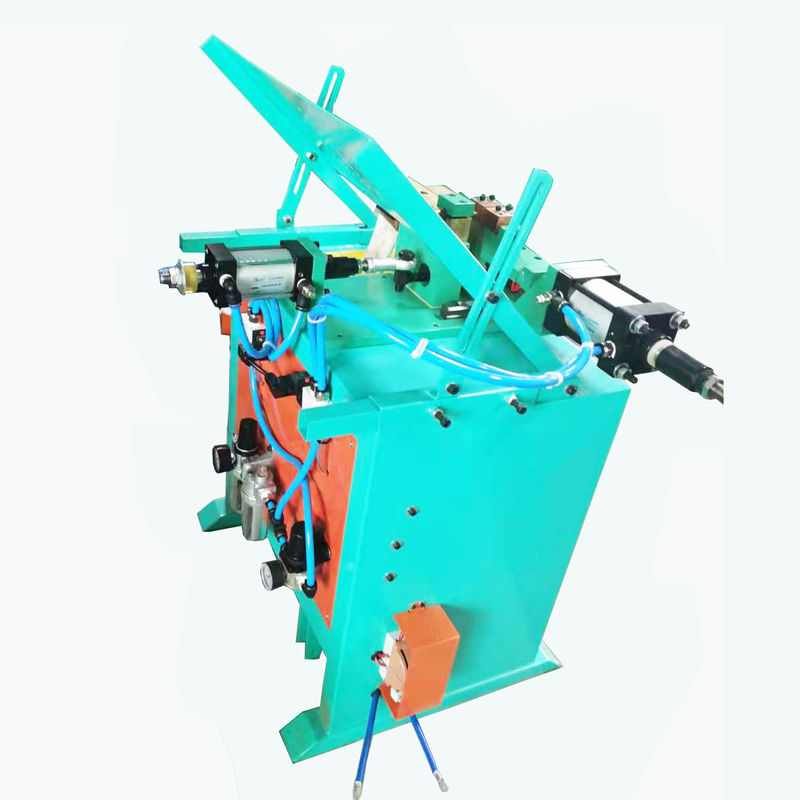

Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware

Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware

Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware
Product Details:
Place of Origin: Guangdong, China
Brand Name: Jin Hongxiang
Certification: CE
Model Number: JT-35
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export wooden case packaging
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Air Pressure T-welder Applicable Industries: Kitchen And Bathroom Hardware Products, Lighting Processing
Weight (KG): 180KG Voltage: 380V
Feature: Slide Rail Push, Push More Flexible. Adjustable Cylinder Control Stroke, More Convenient Welding Advantage: With Sufficient Power, The Welding Is More Firm And Beautiful.
After Warranty Service: Video Technical Support, Online Support Port: Shenzhen
Highlight:

Pneumatic Wire Welder Machine

,

380V Wire Welder Machine

Pneumatic T-type welding machine



      T-type welding machine is mainly used for T-type butt welding of iron wire on one plane. It is widely used for welding T-cover on lighting, and other hardware products are also common.

Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 0

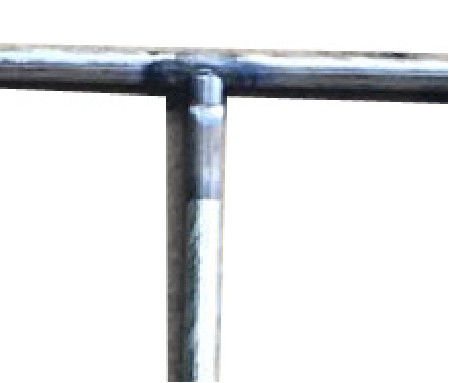

The following welding methods

Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 1

Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 2







Feature
1. It can adjust and control the clamping, welding, upsetting, maintenance and rest of the welding process, with simple operation and convenient adjustment
2. With greater clamping force, Ensure that the workpiece does not slip during upsetting welding, and the welding performance is more stable;
3. Fast reaction speed, high efficiency and less welding burr, which is conducive to simplifying the next process. Welding style: This machine is mainly used for lampshade welding in lighting factory. The existing iron wire is perpendicular to a plane, not up and down. Fast and flat, t-weld an interface in less than 1 second.
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 3
Basic structure


1. Increase and thicken conductive brass, electrode and copper strip, which are the key to ensure the export of current. If the copper made here meets the standard, it will have strong welding ability, good welding effect, longer machine durability and faster welding speed.
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 4


2. The integral pushing part shares 3 sets of double slider guide rails, which makes the movement easy and simple.
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 5

3. The front, rear, left and right cylinders can be adjusted to make the welding position more accurate and the welding melting point can be controlled to be more ideal.
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 6
4. The special workpiece adjusting baffle can support the workpiece and adjust the welding angle of the workpiece for large workpieces, which is very useful.
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 7


5. Taiwan AIRTAC solenoid valve, a solenoid valve with the same effect, is more durable and faster.
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 8

6. Taiwan SNS pneumatic components, air pipes and connectors. Independent two-piece, pressure reducing valve, convenient adjustment, oil injection, water filtration, adjustment, more independent.
Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 9

7. Red copper coil, Baosteel silicon steel, transformer with sufficient capacity, large current and good welding effect. Not
afraid of oxidation, the welding effect remains unchanged for a long time. Taiwan technology CNC control box, convenient
adjustment, small spark, soft and stable current

Technical parameters:

Technical parameters: 　 　
Model Rated power Input voltage weight (KG) Welding ability (MM) Packing size (CM)
JT-35 35KVA 380V/50HZ 180 φ8+φ8 117*80*118
JT-50 50KVA 380V/50HZ 250 φ10+φ10 117*80*118



Welding product display



Pneumatic Wire Welder Machine T Type Air Pressure 380V For Hardware 10
