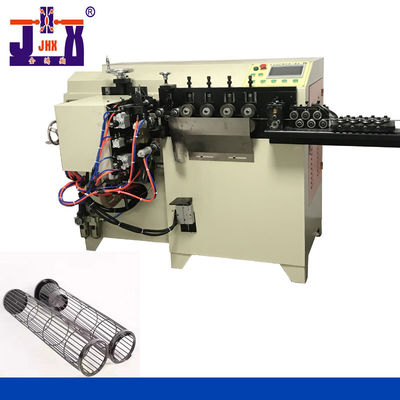

Name: 1.5KW Wire Forming Machine 85m/min For Dust Removal Framework
Brand: Jin Hongxiang
SKU: J2-8MM
Rating: 5 (194 reviews)

Home Products Wire Forming Machine

1.5KW Wire Forming Machine 85m/min For Dust Removal Framework

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	J2-8MM
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export safety wooden case
Delivery Time:	5-10 days or negotiation
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Circle Making And Butt Welding Machine	Machine Type:	Circle Making + Butt Welding, Multi-function
Core Components:	Taiwan Water-cooled Transformer, Electric Bay Solenoid Valve, PLC Programming, Precision Servo	Applicable Industries:	Environmental Protection Dust Removal Framework, Fan Net Cover, Cement Pole, Lampshade, Handicrafts, Flowerpot Rack, Luggage Fastener, Daily Hardware Kitchen And Sanitary Appliances.
Control System:	PLC Programming + Human-machine Interface Display.	Feature:	Fully Automatic
Function:	Counting/ Sound-light Alarm/ Monitoring	Circle Diameter Error:	±0.3mm
Port:	Shenzhen,China
Highlight:	1.5KW Wire Forming Machine , Wire Forming Machine 85m/min

Circle making machine (circle making + butt welding) for environmental protection dust removal framework

Full automatic ring and butt welding machine is widely used for environmental protection dust removal framework

Loop + butt welding, multi-functional, fully automatic.

All materials can be round iron or flat iron, which can be customized according to customer needs.

Nickname

All in one machine for circle and butt welding,
Automatic steel circle o and bending with welder wire ring making butt welding machine
Circle making and butt welding machine
2-8MM Grill Fan Guard Wire Ring Butt Welding Making Machine

Performance characteristics

1.Servo feeding, fast looping speed, hydraulic cutter, simple and fast, great strength. Making circle + butt welding can be completed at one time, saving time, labor and labor.

2.The whole machine CNC lathe + CNC milling has good coordination and precision. It is more guaranteed than similar products, faster and more efficient.

Structural details are displayed one by one:

1. Horizontal and vertical two groups of straightening guard wheel, thickened and hardened, double ball. The safety wire is well straightened and more durable.

2 . 4 groups, 8 wire feeding forming wheels, with large force, stability and wear resistance. There are only 3 groups and 6 similar machines from other manufacturers. Moreover, the processing is accurate, and the surface of the trunking is specially smooth.

3. The increased and thickened all red copper strip with special insulation has stronger conductivity and more guarantee for welding. The surface is transparent and can be seen with real materials.

Assembly workshop of all-in-one circular butt welding machine

Technical parameters of fast looping butt welding machine

Technical parameter
Model	JQDH2-6MM	JQDH2-8MM
Wire diameter range (MM)	Hard wire2-4MM Flexible cord2-6MM	Hard wire2-6MM Flexible cord2-8MM
Servo device	2.6KW+7B	2.3KW+10B
Hydraulic device	1.5KW	2.2KW
Maximum wire feeding speed(M/MIN)	85	52
Circle diameter range(MM)	50-600	50-600
Circle diameter Tolerance (MM)	±0.3	±0.3
Welding power	50KVA	60KVA
Pneumatic brand	Taiwan SNS	Taiwan SNS
Solenoid valve brand	Taiwan,AirTAC	Taiwan,AirTAC
Overall dimension (CM)	220142127	220142127

1.5KW Wire Forming Machine 85m/min For Dust Removal Framework 5

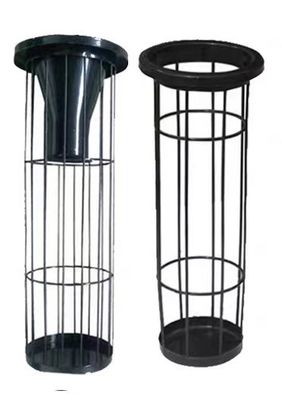

Environmental protection dust removal framework display

1.5KW Wire Forming Machine 85m/min For Dust Removal Framework 6
