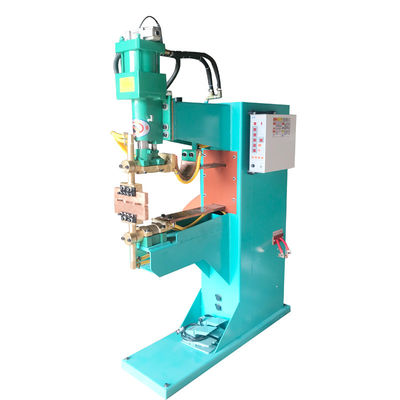

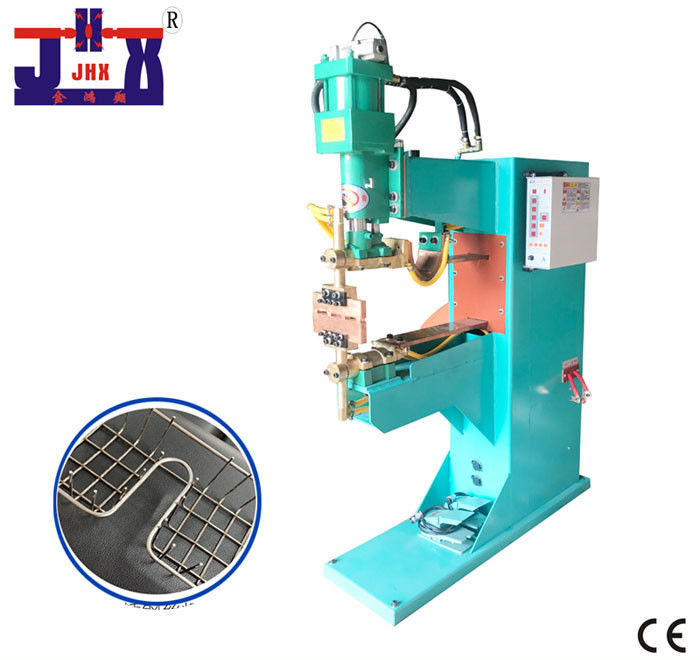

Name: 50mm Spot Welding Machine 50HZ 60KVA Pressure Welding Machine For Basket
Brand: Jin Hongxiang
SKU: JD-60
Rating: 5 (171 reviews)

Home Products Spot Welding Machine

50mm Spot Welding Machine 50HZ 60KVA Pressure Welding Machine For Basket

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Jin Hongxiang
Certification:	CE
Model Number:	JD-60
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export safety wooden case
Delivery Time:	5-10 working days. Or negotiation
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Spot Welder	Applicable Industries:	Building Cover Plate, Railway / Road Guardrail, Pet Cage, Storage Rack, Net Basket
Rated Capacity:	60KVA	Rated Duty Cycle:	80%
Usage:	Welding, Multi-point Welding	Voltage:	380V, 50HZ
Warranty:	1 Year	Key Selling Points:	Taiwan's Water-cooled Wet Control Transformer Will Not Be Affected By Overload
Weight (KG):	360 KG	Control System:	Touch Electric Box Control
Cylinder Stroke:	50MM	Nominal Frequency:	50/60HZ
Feature:	Sufficient Power, Beautiful Welding, Firm And Fast Response	Port:	Shenzhen,China
Highlight:	Spot Welding Machine 50HZ , 50mm Spot Welding Machine , 60KVA Pressure Welding Machine

Air pressure row welder for basket welding

Product Description

Performance characteristics

1. Cylinder direct pressure mechanism, good follow-up performance, fast welding speed, combined cylinder, Taiwan AS2410 large flow solenoid valve.Taiwan AS2410 solenoid valve has strong suction and sensitive response. It is ideal for continuous row welding of mesh.

2. All red copper water cooling temperature control device of transformer has the advantages of long service life, low noise, safety and convenient use.

A. Taiwan transformer features: sufficient capacity, greater welding force and stronger conductivity.

B. Water circulation cooling, which can be used within the rated range to ensure 24 hours of operation.

C. Moreover, the temperature control device can work overload and automatically cut off power to protect the whole machine from being affected.

3.The water-saving forced cooling mode is adopted, and the main circuit adopts high-power SCR contactless switch, with high conductivity and low power loss , High temperature automatic protection.

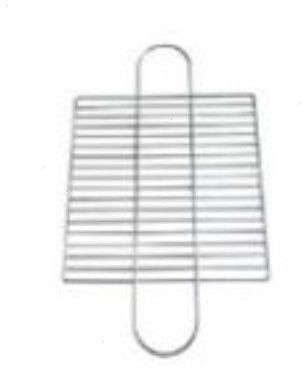

Welding product representative

Technical parameters:

Model

Rated power KVA

Input voltage V

Nominal frequency HZ

Maximum short circuit current A

arm length mm

ectrode travel MM

Cooling water volume

Weight KG

JD-60

380

50/60

22000

600

350

JD-80

380

50/60

28000

600

400

JD-100

100

380

50/60

30000

600

430

JD-120

120

380

50/60

32000

600

460

JD-150

150

380

50/60

34000

600

500

JDX-35

380

50/60

15000

400

197

JDX-50

380

50/60

20000

400

248

FAQ

Q: What is your normal lead time?

A. If there is stock, our company usually receives the payment for goods and delivers them within a week. If it needs to be customized, the delivery cycle is usually 3-4 weeks after receiving the deposit.

Q: What are your terms of payment?

A: We accept TT.

Q: What kind of packing do you offer?

A. Packaging is usually installed for the export of plywood boxes.

Q: What is the minimum order quantity you can produce?

A. Usually we have them in stock, and the minimum order is 1 set.

Q: How to control product quality?

A. We always attach great importance to product quality. Before leaving the factory, it will be fully aged and debugged. And we always adhere to the principle of "providing customers with better quality, better price and better service.
